P. 2541

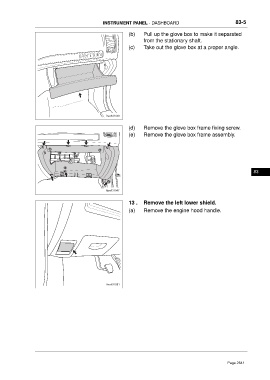

INSTRUMENT PANEL - DASHBOARD 83-5
(b) Pull up the glove box to make it separated
from the stationary shaft.
(c) Take out the glove box at a proper angle.
ftwx831059
(d) Remove the glove box frame fixing screw.
(e) Remove the glove box frame assembly.
83
ftwx831047
13 . Remove the left lower shield.
(a) Remove the engine hood handle.
ftwx831061
