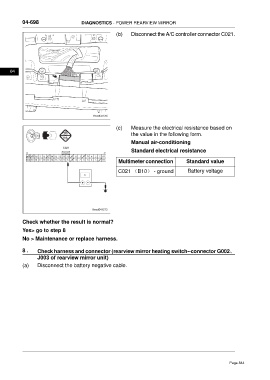

04-698 DIAGNOSTICS - POWER REARVIEW MIRROR
(b) Disconnect the A/C controller connector C021.
04
(c) Measure the electrical resistance based on
the value in the following form.
Manual air-conditioning
Standard electrical resistance
Multimeter connection Standard value
C021 （B10） - ground Battery voltage
Check whether the result is normal?
Yes> go to step 8
No > Maintenance or replace harness.
8 . Check harness and connector (rearview mirror heating switch--connector G002、
J003 of rearview mirror unit)
(a) Disconnect the battery negative cable.
