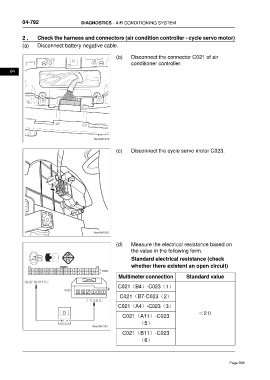

04-792 DIAGNOSTICS - AIR CONDITIONING SYSTEM
2 . Check the harness and connectors (air condition controller - cycle servo motor)
(a) Disconnect battery negative cable.
(b) Disconnect the connector C021 of air
conditioner controller.
04
(c) Disconnect the cycle servo motor C023.
(d) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)
Multimeter connection Standard value
C021（B4）-C023（1）
C021（B7-C023（2）
C021（A4）-C023（3）
＜2Ω
C021（A11）-C023
（5）
C021（B11）-C023
（6）
