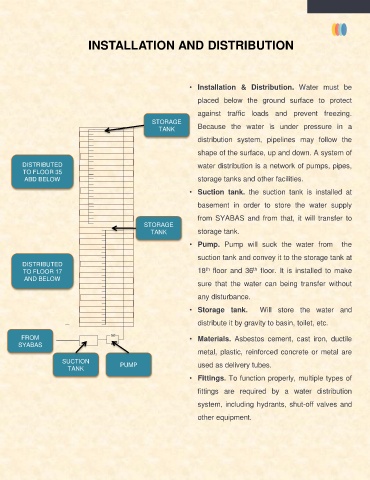

INSTALLATION AND DISTRIBUTION

• Installation & Distribution. Water must be

placed below the ground surface to protect
against traffic loads and prevent freezing.
STORAGE
TANK Because the water is under pressure in a
distribution system, pipelines may follow the

shape of the surface, up and down. A system of
DISTRIBUTED water distribution is a network of pumps, pipes,
TO FLOOR 35
ABD BELOW storage tanks and other facilities.

• Suction tank. the suction tank is installed at

basement in order to store the water supply
from SYABAS and from that, it will transfer to
STORAGE
TANK storage tank.

• Pump. Pump will suck the water from the
suction tank and convey it to the storage tank at
DISTRIBUTED
th
th
TO FLOOR 17 18 floor and 36 floor. It is installed to make
AND BELOW
sure that the water can being transfer without
any disturbance.

• Storage tank. Will store the water and

distribute it by gravity to basin, toilet, etc.

FROM • Materials. Asbestos cement, cast iron, ductile
SYABAS
metal, plastic, reinforced concrete or metal are
SUCTION PUMP used as delivery tubes.
TANK
• Fittings. To function properly, multiple types of

fittings are required by a water distribution
system, including hydrants, shut-off valves and

other equipment.
