P. 48
melting machine

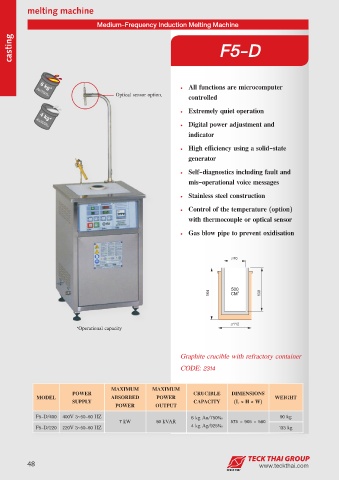

Medium-Frequency Induction Melting Machine
casting F5-D
• All functions are microcomputer
6 kg*
Optical sensor option, controlled
Au/750‰
• Extremely quiet operation
4 kg*
• Digital power adjustment and
Au/925‰
indicator
• High efficiency using a solid-state
generator
• Self-diagnostics including fault and
mis-operational voice messages
• Stainless steel construction
• Control of the temperature (option)
with thermocouple or optical sensor
• Gas blow pipe to prevent oxidisation
70
500
164 CM 3 138
112
*Operational capacity
Graphite crucible with refractory container
CODE: 2314
MAXIMUM MAXIMUM
POWER CRUCIBLE DIMENSIONS
MODEL ABSORBED POWER WEIGHT
SUPPLY CAPACITY (L × H × W)
POWER OUTPUT
F5-D/400 400V 3~50-60 HZ 6 kg Au/750% 90 kg
₀
7 kW 80 kVAR ₀ 575 × 905 × 580
F5-D/220 220V 3~50-60 HZ 4 kg Ag/925% 133 kg
