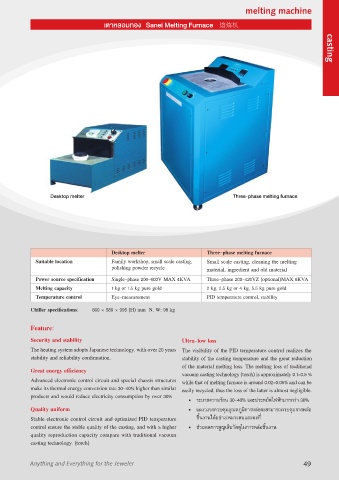

Page 49 - TTI Catalogue 2017 final

melting machine

เตาหลอมทอง Sanei Melting Furnace 熔炼机 casting

Desktop melter Three-phase melting furnace

Desktop melter Three-phase melting furnace
Suitable location Family workshop, small scale casting, Small scale casting, cleaning the melting
polishing powder recycle material, ingredient and old material
Power source specification Single-phase 200-600V MAX 4KVA Three-phase 200-420VZ (optional)MAX 6KVA
Melting capacity 1 kg or 1.5 kg pure gold 2 kg, 2.5 kg or 4 kg, 5.5 kg pure gold
Temperature control Eye-measurement PID temperature control, stability

Chiller specifications: 600 × 580 × 995 (H) mm N. W: 98 kg

Feature:

Security and stability Ultra-low loss
The heating system adopts Japanese technology, with over 20 years The visibility of the PID temperature control realizes the
stability and reliability confirmation. stability of the casting temperature and the great reduction
of the material melting loss. The melting loss of traditional
Great energy efficiency vacuum casting technology (torch) is approximately 0.1-0.5 %
Advanced electronic control circuit and special chassis structures while that of melting furnace is around 0.02-0.05% and can be
make its thermal energy conversion rate 30-40% higher than similar easily recycled, thus the loss of the latter is almost negligible.
products and would reduce electricity consumption by over 30%
• ระบายความร้อน 30-40% และประหยัดไฟฟ้ามากกว่า 30%
Quality uniform • แผงวงจรควบคุมอุณหภูมิการหล่อจะสามารถควบคุมการหล่อ
Stable electronic control circuit and optimized PID temperature ชิ้นงานได้อย่างเหมาะสมและคงที่
control ensure the stable quality of the casting, and with a higher • ช่วยลดการสูญเสียวัสดุในการหล่อชิ้นงาน
quality reproduction capacity compare with traditional vacuum
casting technology. (torch)

Anything and Everything for the Jeweler 49
