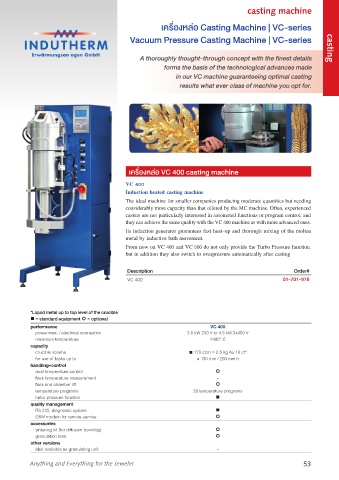

Page 53 - TTI Catalogue 2017 final

casting machine

เครื่องหล่อ Casting Machine | VC-series

Vacuum Pressure Casting Machine | VC-series

A thoroughly thought-through concept with the finest details casting
forms the basis of the technological advances made
in our VC machine guaranteeing optimal casting
results what ever class of machine you opt for.

เครื่องหล่อ VC 400 casting machine

VC 400
Induction heated casting machine
The ideal machine for smaller companies producing moderate quantities but needing
considerably more capacity than that offered by the MC machine. Often, experienced
casters are not particularly interested in automated functions or program control, and
they can achieve the same quality with the VC 400 machine as with more advanced ones.
Its induction generator guarantees fast heat-up and thorough mixing of the molten
metal by inductive bath movement.
From now on VC 400 and VC 500 do not only provide the Turbo Pressure function,
but in addition they also switch to overpressure automatically after casting

Description Order#
VC 400 01-701-978

*Liquid metal up to top level of the crucible
 = standard equipment  = optional
performance VC 400
power max. / electrical connection 3.5 kW 230 V or 4.5 kW 3x400 V
maximum temperature 1400° C
capacity
crucible volume  170 ccm = 2.5 kg Au 18 ct*
for use of flasks up to ø 130 mm / 260 mm h
handling+control
dual temperature control 
flask temperature measurement –
flask and chamber lift 
temperature programs 20 temperature programs
turbo pressure function 
quality management
RS 232, diagnostic system 
GSM modem for remote service 
accessories
sintering kit (for diffusion bonding) 
granulation tank 
other versions
also available as granulating unit –
