Page 113 - Eden Meadow 35 houses application as of 12 October

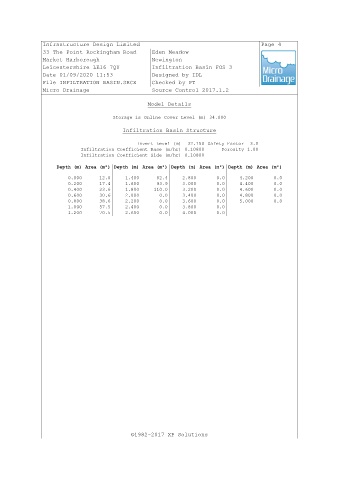

Infrastructure Design Limited Page 4
33 The Point Rockingham Road Eden Meadow
Market Harborough Newington
Leicestershire LE16 7QU Infiltration Basin FOS 3
Date 01/09/2020 11:53 Designed by IDL
File INFILTRATION BASIN.SRCX Checked by PT
Micro Drainage Source Control 2017.1.2

Model Details

Storage is Online Cover Level (m) 34.000

Infiltration Basin Structure

Invert Level (m) 32.150 Safety Factor 3.0
Infiltration Coefficient Base (m/hr) 0.10800 Porosity 1.00
Infiltration Coefficient Side (m/hr) 0.10800
Depth (m) Area (m²) Depth (m) Area (m²) Depth (m) Area (m²) Depth (m) Area (m²)
0.000 12.0 1.400 82.4 2.800 0.0 4.200 0.0
0.200 17.4 1.600 93.9 3.000 0.0 4.400 0.0
0.400 23.6 1.800 110.0 3.200 0.0 4.600 0.0
0.600 30.6 2.000 0.0 3.400 0.0 4.800 0.0
0.800 38.6 2.200 0.0 3.600 0.0 5.000 0.0
1.000 57.5 2.400 0.0 3.800 0.0
1.200 70.5 2.600 0.0 4.000 0.0

©1982-2017 XP Solutions
