Installation Systems

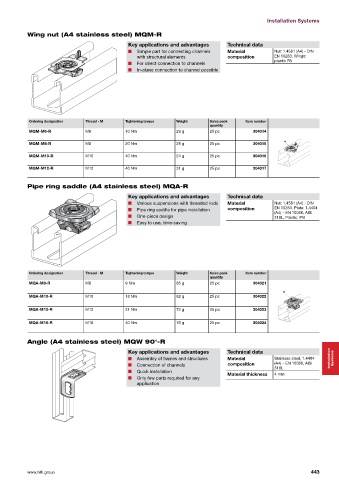

Installation channel (A4 stainless steel) MQ-41 D-R Wing nut (A4 stainless steel) MQM-R
Key applications and advantages Technical data Key applications and advantages Technical data
■ Recommended for installation in indus- Material Stainless steel, 1.4404 ■ Simple part for connecting channels Material Nut: 1.4581 (A4) - DIN
trial atmospheres or areas with heavy composition (A4) - EN 10088, AISI with structural elements composition EN 10283, Wings:
316L plastic PA
condensation ■ For direct connection to channels
■ Pipework ■ In-plane connection to channel possible
■ Air ducts
■ C-profile with serrated edges
■ Pre-marked dimensions make installa-
tion, assembly and cutting easy

Ordering designation Height Length Material Thickness Weight per metre length Approvals Sales pack Item number Ordering designation Thread - M Tightening torque Weight Sales pack Item number
quantity quantity
MQ-41D-R 6m 83 mm 6 m 2 mm 4275 g RAL-GZ 655-C 6 m 304003 MQM-M6-R M6 10 Nm 29 g 25 pc 304014

0
MQM-M8-R M8 20 Nm 28 g 25 pc 304015
MQM-M10-R M10 40 Nm 24 g 25 pc 304016

MQM-M12-R M12 40 Nm 31 g 25 pc 304017

Pipe ring saddle (A4 stainless steel) MQA-R
Bracket (A4 stainless steel) MQK-41-R Key applications and advantages Technical data
■ Various suspensions with threaded rods Material Nut: 1.4581 (A4) - DIN
Key applications and advantages Technical data EN 10283, Plate: 1.4404
■ Pipe ring saddle for pipe installation composition
■ For the installation of cable trays, air Material Stainless steel, 1.4404 (A4) – EN 10088, AISI
ducts and pipe supports composition (A4) – EN 10088, AISI ■ One-piece design 316L, Plastic: PB
316L ■ Easy to use, time-saving
■ For installation in industrial atmos-
pheres or areas with high condensation
■ Serrated C-section
■ Pre-marked dimensions make installa-
tion, assembly and measurement easy

Ordering designation Thread - M Tightening torque Weight Sales pack Item number
quantity
Ordering designation Profile Length - L Material thickness Weight Sales pack Item number MQA-M8-R M8 9 Nm 85 g 25 pc 304021
quantity
MQK-41/300-R MQ-41-R 300 mm Channel: 2 mm, Baseplate: 8 mm 997 g 10 pc 304005 0
MQA-M10-R M10 18 Nm 82 g 25 pc 304022

/
MQK-41/450-R MQ-41-R 450 mm Channel: 2 mm, Baseplate: 8 mm 1332 g 10 pc 304006 [
MQA-M12-R M12 31 Nm 72 g 25 pc 304023

MQK-41/600-R MQ-41-R 600 mm Channel: 2 mm, Baseplate: 8 mm 1625 g 8 pc 304007
MQA-M16-R M16 40 Nm 76 g 25 pc 304024
Channel connector (A4 stainless steel) MQN-R
Angle (A4 stainless steel) MQW 90°-R
Key applications and advantages Technical data
Key applications and advantages Technical data
■ One-piece component for connecting Material Screw: A4-70 - DIN ISO
channels and structural elements composition 3506-1, Nut: 1.4581 (A4) ■ Assembly of frames and structures Material Stainless steel, 1.4404 Installation Installation Systems Systems
- DIN EN 10283, Plate: composition (A4) – EN 10088, AISI
■ Universal: one and the same nut for all ■ Connection of channels
1.4404 (A4) – EN 10088, 316L
channels AISI 316L ■ Quick installation Material thickness 4 mm
■ Holds securely once pushed in, turned ■ Only few parts required for any
and tightened application

Ordering designation Thread - M Wrench size Tightening torque Weight Sales pack Item number
quantity
MQN-R M10 17 mm 40 Nm 77 g 25 pc 304012
