Aircraft general knowledge
8.6.4 The electrical system

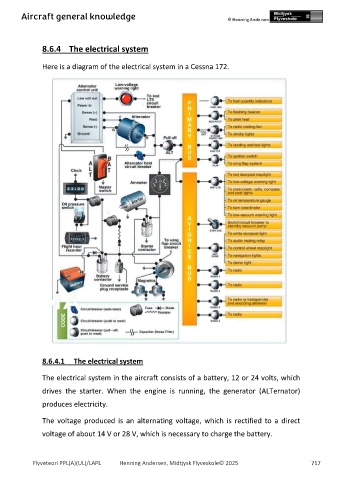

Here is a diagram of the electrical system in a Cessna 172.
8.6.4.1 The electrical system
The electrical system in the aircraft consists of a battery, 12 or 24 volts, which
drives the starter. When the engine is running, the generator (ALTernator)
produces electricity.
The voltage produced is an alternating voltage, which is rectified to a direct
voltage of about 14 V or 28 V, which is necessary to charge the battery.
