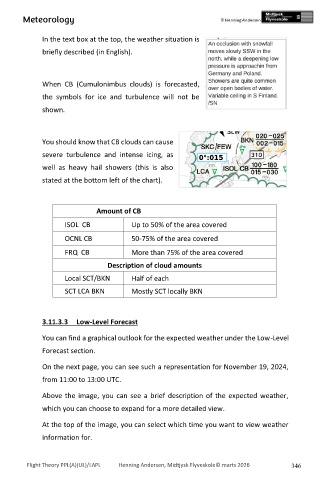

Page 346 - PPL BEG-engelsk
P. 346
Meteorology
In the text box at the top, the weather situation is
briefly described (in English).
When CB (Cumulonimbus clouds) is forecasted,
the symbols for ice and turbulence will not be
shown.
You should know that CB clouds can cause
severe turbulence and intense icing, as
well as heavy hail showers (this is also
stated at the bottom left of the chart).
Amount of CB
ISOL CB Up to 50% of the area covered
OCNL CB 50-75% of the area covered
FRQ CB More than 75% of the area covered
Description of cloud amounts
Local SCT/BKN Half of each
SCT LCA BKN Mostly SCT locally BKN
3.11.3.3 Low-Level Forecast
You can find a graphical outlook for the expected weather under the Low-Level
Forecast section.
On the next page, you can see such a representation for November 19, 2024,
from 11:00 to 13:00 UTC.
Above the image, you can see a brief description of the expected weather,
which you can choose to expand for a more detailed view.
At the top of the image, you can select which time you want to view weather
information for.
