132  A PRACTICAL GUIDE TO EQUINE RADIOGRAPHY



                   Cranioventral-caudodorsal oblique               5.  Focus–film distance: 120 cm. Adjust the
      VetBooks.ir  (CrV-CdDO) in the standing horse                   focus–film distance to the distance speci-

                                                                      fied for the grid.
                   (Figs 13.5–13.8)
                   1.  Stand the horse square with the hind limbs   6.  Angle the X-ray beam upward 10–25 degrees
                       abducted as far as possible and ensure all     from the vertical.
                       limbs are equally weight-bearing.           7.  X-ray beam centring depends on the area
                   2.  Place the plate in landscape orientation       of interest as several overlapping views are
                       dorsal to the pelvic region, following the     required for a comprehensive radiographic
                       inclination of the pelvis.                     examination of the pelvis.
                   3.  Indicate right/left with a marker.          8.  Collimate tightly around the area of interest
                   4.  Position the X-ray machine ventral to the      to reduce scatter.
                       horse’s abdomen in front of the hind limbs.  9.  Exposure guide: 150 kVp, 200 mAs.

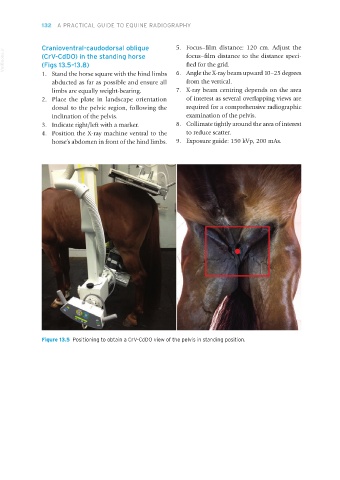

                   Figure 13.5  Positioning to obtain a CrV-CdDO view of the pelvis in standing position.
