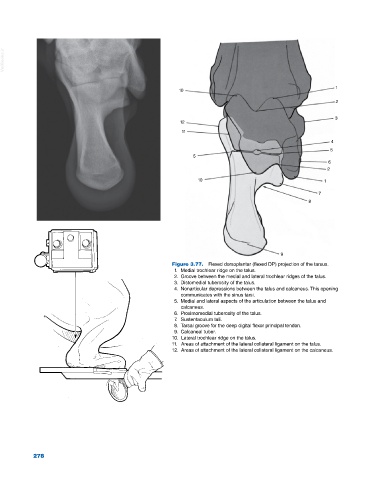

Figure 3.77. Flexed dorsoplantar (flexed DP) projection of the tarsus.
1. Medial trochlear ridge on the talus.
2. Groove between the medial and lateral trochlear ridges of the talus.
3. Distomedial tuberosity of the talus.
4. Nonarticular depressions between the talus and calcaneus. This opening
communicates with the sinus tarsi.
5. Medial and lateral aspects of the articulation between the talus and
calcaneus.
6. Proximomedial tuberosity of the talus.
7. Sustentaculum tali.
8. Tarsal groove for the deep digital flexor principal tendon.
9. Calcaneal tuber.
10. Lateral trochlear ridge on the talus.
11. Areas of attachment of the lateral collateral ligament on the talus.
12. Areas of attachment of the lateral collateral ligament on the calcaneus.
