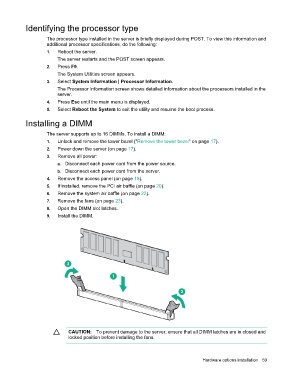

Identifying the processor type

The processor type installed in the server is briefly displayed during POST. To view this information and
additional processor specifications, do the following:
1. Reboot the server.
The server restarts and the POST screen appears.
2. Press F9.
The System Utilities screen appears.
3. Select System Information | Processor Information.
The Processor Information screen shows detailed information about the processors installed in the
server.
4. Press Esc until the main menu is displayed.
5. Select Reboot the System to exit the utility and resume the boot process.

Installing a DIMM

The server supports up to 16 DIMMs. To install a DIMM:
1. Unlock and remove the tower bezel ("Remove the tower bezel" on page 17).
2. Power down the server (on page 17).
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Remove the access panel (on page 18).
5. If installed, remove the PCI air baffle (on page 20).
6. Remove the system air baffle (on page 22).
7. Remove the fans (on page 23).
8. Open the DIMM slot latches.
9. Install the DIMM.

CAUTION: To prevent damage to the server, ensure that all DIMM latches are in closed and
locked position before installing the fans.

Hardware options installation 50
