P. 55

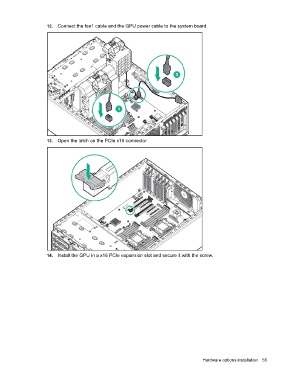

12. Connect the fan1 cable and the GPU power cable to the system board.
13. Open the latch on the PCIe x16 connector.
14. Install the GPU in a x16 PCIe expansion slot and secure it with the screw.
Hardware options installation 55
