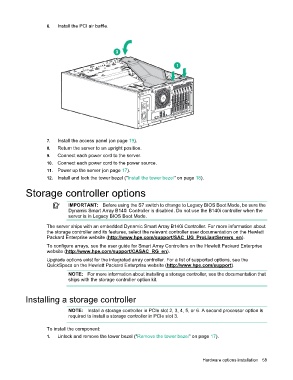

6. Install the PCI air baffle.

7. Install the access panel (on page 19).
8. Return the server to an upright position.
9. Connect each power cord to the server.
10. Connect each power cord to the power source.
11. Power up the server (on page 17).
12. Install and lock the tower bezel ("Install the tower bezel" on page 18).

Storage controller options

IMPORTANT: Before using the S7 switch to change to Legacy BIOS Boot Mode, be sure the
Dynamic Smart Array B140i Controller is disabled. Do not use the B140i controller when the
server is in Legacy BIOS Boot Mode.

The server ships with an embedded Dynamic Smart Array B140i Controller. For more information about
the storage controller and its features, select the relevant controller user documentation on the Hewlett
Packard Enterprise website (http://www.hpe.com/support/SAC_UG_ProLiantServers_en).
To configure arrays, see the user guide for Smart Array Controllers on the Hewlett Packard Enterprise
website (http://www.hpe.com/support/CASAC_RG_en).
Upgrade options exist for the integrated array controller. For a list of supported options, see the
QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/support).

NOTE: For more information about installing a storage controller, see the documentation that
ships with the storage controller option kit.

Installing a storage controller

NOTE: Install a storage controller in PCIe slot 2, 3, 4, 5, or 6. A second processor option is
required to install a storage controller in PCIe slot 3.

To install the component:
1. Unlock and remove the tower bezel ("Remove the tower bezel" on page 17).

Hardware options installation 58
