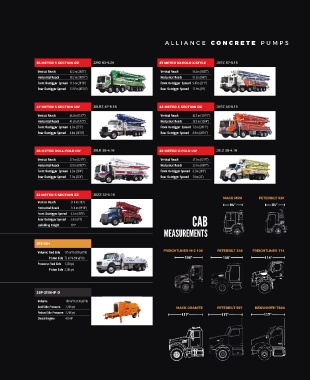

Page 71 - 2018 Alliance Parts Catalog USA Edition

ALLIANCE C ONCRETE PUMPS

METER SECTION RZ JJRZ 63-5.20 METER RZ-FOLD X-STYLE JXRZ 57-5.18
Vertical Reach 62.2 m (204’1”) Vertical Reach 56.2m (184’5”)
Horizontal Reach 58.2 m (190’11”) Horizontal Reach 51.2m (168”)
Front Outrigger Spread 11.6 m (38’10”) Front Outrigger Spread 9.47m (31’1”)
Rear Outrigger Spread 13.97 m (45’10”) Rear Outrigger Spread 11.9m (39’)

METER SECTION LW JXLRZ 47-5.16 METER SECTION RZ JXRZ 43-5.16

Vertical Reach 46.2m (151’7”) Vertical Reach 42.5 m (139’ 5”)
Horizontal Reach 41.2m (135’2”) Horizontal Reach 38.5 m (126’4”)
Front Outrigger Spread 8.3m (27’3”) Front Outrigger Spread 7.6 m (24’11”)
Rear Outrigger Spread 8.8m (28’10”) Rear Outrigger Spread 8.8 m (28’10”)

METER ROLL-FOLD LW JXLR 38-4.16 METER Z-FOLD LW JXLZ 38-4.16
Vertical Reach 37.1m (121’9”) Vertical Reach 37.1m (121’9”)
Horizontal Reach 33.1m (108’7”) Horizontal Reach 33.1m (108’7”)
Front Outrigger Spread 6.2m (20’4”) Front Outrigger Spread 6.3m (20’8”)
Rear Outrigger Spread 7.1m (23’4”) Rear Outrigger Spread 7.0m (23’)

METER SECTION ZZ JXZZ 32-5.16
MACK MRU PETERBILT 520
Vertical Reach 31.4 m (103’) 84” 84”
Horizontal Reach 27.4 m (89’10”)
Front Outrigger Spread 6.3 m (20’8”)
Rear Outrigger Spread 5.8 m (19’) CAB
Unfolding Height 19’7”
MEASUREMENTS

JFS-H
Volume: Rod Side 115 m /h (150 yd /h) FREIGHTLINER M-2 106 PETERBILT 348 FREIGHTLINER 114
3
3
Piston Side 72 m /h (94 yd /h) 106” 108” 114”
3
3
Pressure: Rod Side 1,334 psi
Piston Side 2,146 psi

JSP-HP-D
3
Volume 100 m /h (130 yd /h)
3
Rod Side Pressure 2,200 psi MACK GRANITE PETERBILT 567 KENWORTH T
Piston Side Pressure 3,248 psi 117” 117” 117”
Diesel Engine 450 HP
