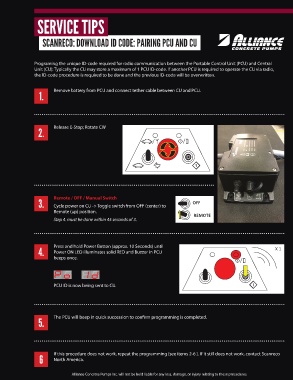

SERVICE TIPS

SCANRECO: DOWNLOAD ID CODE: PAIRING PCU AND CU

Programing the unique ID-code required for radio communication between the Portable Control Unit (PCU) and Central
Unit (CU): Typically the CU may store a maximum of 1 PCU ID-code. If another PCU is required to operate the CU via radio,
the ID-code procedure is required to be done and the previous ID-code will be overwritten.

1. Remove battery from PCU and connect tether cable between CU and PCU.

2. Release E-Stop; Rotate CW

OFF OFF

REMOTE
REMOTE

3. Remote / OFF / Manual Switch X 1 OFF OFF
X 1
Cycle power on CU -> Toggle switch from OFF (center) to
Remote (up) position. REMOTE
REMOTE
Step 4. must be done within 45 seconds of 3.
OFF

REMOTE

4. Press and hold Power Button (approx. 10 Seconds) until X 1 X 1
Power ON LED illuminates solid RED and Buzzer in PCU
beeps once.

X 1

PCU ID is now being sent to CU.

The PCU will beep in quick succession to confirm programming is completed.
5.

6 If this procedure does not work, repeat the programming (see items 2-6 ). If it still does not work, contact Scanreco
North America.

Alliance Concrete Pumps Inc. will not be held liable for any loss, damage, or injury relating to these procedures.
