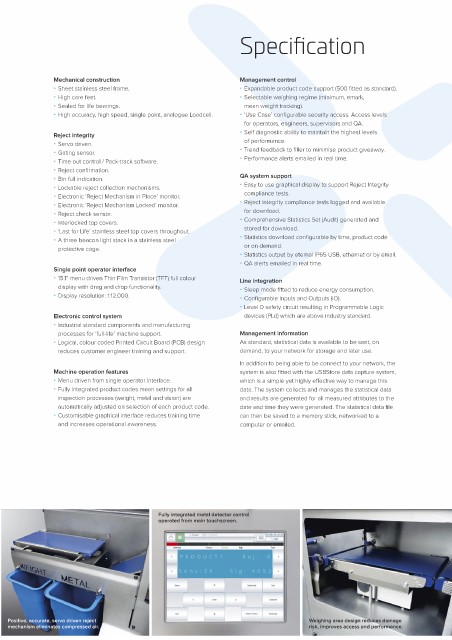

Speci cation

Mechanical construction Management control
• Sheet stainless steel frame. • Expandable product code support (500 fitted as standard).
• High care feet. • Selectable weighing regime (minimum, emark,
• Sealed for life bearings. mean weight tracking).
• High accuracy, high speed, single point, analogue Loadcell. • ‘Use Case’ configurable security access. Access levels
for operators, engineers, supervisors and QA.
• Self diagnostic ability to maintain the highest levels
Reject integrity
of performance.
• Servo driven.
• Trend feedback to filler to minimise product giveaway.
• Gating sensor.
• Performance alerts emailed in real time.
• Time out control / Pack-track software.
• Reject confirmation.
QA system support
• Bin full indication.
• Easy to use graphical display to support Reject Integrity
• Lockable reject collection mechanisms.
compliance tests.
• Electronic ‘Reject Mechanism in Place’ monitor.
• Reject Integrity compliance tests logged and available
• Electronic ‘Reject Mechanism Locked’ monitor.
for download.
• Reject check sensor.
• Comprehensive Statistics Set (Audit) generated and
• Interlocked top covers.
stored for download.
• ‘Last for Life’ stainless steel top covers throughout.
• Statistics download configurable by time, product code
• A three beacon light stack in a stainless steel
or on demand.
protective cage.
• Statistics output by eternal IP65 USB, ethernet or by email.
• QA alerts emailed in real time.
Single point operator interface
• 15.1” menu driven Thin Film Transistor (TFT) full colour
Line integration
display with drag and drop functionality. • Sleep mode fitted to reduce energy consumption.
• Display resolution: 1:12,000.
• Configurable Inputs and Outputs (IO).
• Level D safety circuit resulting in Programmable Logic
Electronic control system devices (PLd) which are above industry standard.
• Industrial standard components and manufacturing
processes for ‘full-life’ machine support. Management information
• Logical, colour coded Printed Circuit Board (PCB) design As standard, statistical data is available to be sent, on
reduces customer engineer training and support. demand, to your network for storage and later use.
In addition to being able to be connect to your network, the
Machine operation features system is also fitted with the USBStore data capture system,
• Menu driven from single operator interface. which is a simple yet highly effective way to manage this
• Fully integrated product codes mean settings for all data. The system collects and manages the statistical data
inspection processes (weight, metal and vision) are and results are generated for all measured attributes to the
automatically adjusted on selection of each product code. date and time they were generated. The statistical data file
• Customisable graphical interface reduces training time can then be saved to a memory stick, networked to a
and increases operational awareness. computer or emailed.

Fully integrated metal detector control
operated from main touchscreen.

Positive, accurate, servo driven reject Weighing area design reduces damage
mechanism eliminates compressed air. risk, improves access and performance.
