Gravity Metal Detector System—Operator Setup Manual

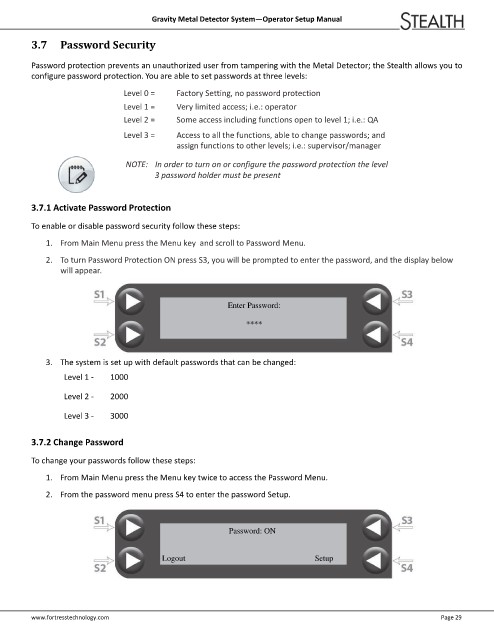

3.7 Password Security

Password protection prevents an unauthorized user from tampering with the Metal Detector; the Stealth allows you to
configure password protection. You are able to set passwords at three levels:

Level 0 = Factory Setting, no password protection
Level 1 = Very limited access; i.e.: operator
Level 2 = Some access including functions open to level 1; i.e.: QA
Level 3 = Access to all the functions, able to change passwords; and
assign functions to other levels; i.e.: supervisor/manager

NOTE: In order to turn on or configure the password protection the level
3 password holder must be present

3.7.1 Activate Password Protection
To enable or disable password security follow these steps:

1. From Main Menu press the Menu key and scroll to Password Menu.

2. To turn Password Protection ON press S3, you will be prompted to enter the password, and the display below
will appear.

Enter Password:

****

3. The system is set up with default passwords that can be changed:

Level 1 ‐ 1000
Level 2 ‐ 2000

Level 3 ‐ 3000

3.7.2 Change Password

To change your passwords follow these steps:
1. From Main Menu press the Menu key twice to access the Password Menu.

2. From the password menu press S4 to enter the password Setup.

Password: ON

Logout Setup

www.fortresstechnology.com Page 29
