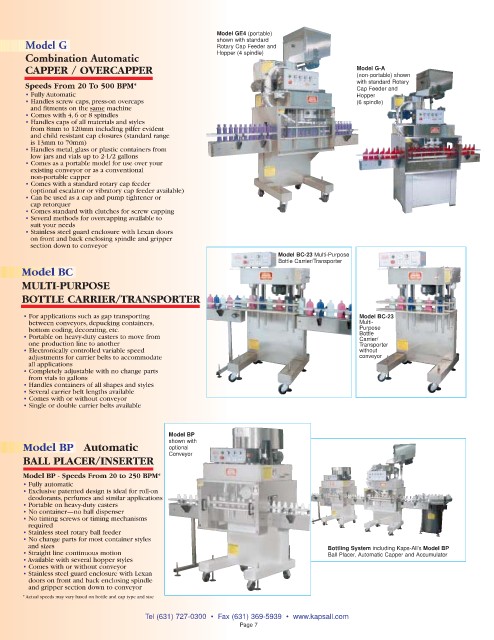

Page 1867 - Flipbook_SolidDesignSoutheast2020

Model GE4 (portable)
shown with standard
Model G Rotary Cap Feeder and
Hopper (4 spindle)
Combination Automatic
CAPPER / OVERCAPPER Model G-A
(non-portable) shown
with standard Rotary
Speeds From 20 To 500 BPM*
Cap Feeder and
• Fully Automatic Hopper
• Handles screw caps, press-on overcaps (6 spindle)
and fitments on the same machine
• Comes with 4, 6 or 8 spindles
• Handles caps of all materials and styles
from 8mm to 120mm including pilfer evident
and child resistant cap closures (standard range
is 13mm to 70mm)
• Handles metal, glass or plastic containers from
low jars and vials up to 2-1/2 gallons
• Comes as a portable model for use over your
existing conveyor or as a conventional
non-portable capper
• Comes with a standard rotary cap feeder
(optional escalator or vibratory cap feeder available)
• Can be used as a cap and pump tightener or
cap retorquer
• Comes standard with clutches for screw capping
• Several methods for overcapping available to
suit your needs
• Stainless steel guard enclosure with Lexan doors
on front and back enclosing spindle and gripper
section down to conveyor
Model BC-23 Multi-Purpose
Bottle Carrier/Transporter
Model BC

MULTI-PURPOSE
BOTTLE CARRIER/TRANSPORTER
• For applications such as gap transporting Model BC-23
between conveyors, depucking containers, Multi-
bottom coding, decorating, etc. Purpose
• Portable on heavy-duty casters to move from Bottle
Carrier/
one production line to another Transporter
• Electronically controlled variable speed without
adjustments for carrier belts to accommodate conveyor
all applications
• Completely adjustable with no change parts
from vials to gallons
• Handles containers of all shapes and styles
• Several carrier belt lengths available
• Comes with or without conveyor
• Single or double carrier belts available

Model BP
shown with
Model BP Automatic optional
Conveyor
BALL PLACER/INSERTER
Model BP - Speeds From 20 to 250 BPM*
• Fully automatic
• Exclusive patented design is ideal for roll-on
deodorants, perfumes and similar applications
• Portable on heavy-duty casters
• No container—no ball dispenser
• No timing screws or timing mechanisms
required
• Stainless steel rotary ball feeder
• No change parts for most container styles
and sizes Bottling System including Kaps-All’s Model BP
• Straight line continuous motion Ball Placer, Automatic Capper and Accumulator
• Available with several hopper styles
• Comes with or without conveyor
• Stainless steel guard enclosure with Lexan
doors on front and back enclosing spindle
and gripper section down to conveyor
* Actual speeds may vary based on bottle and cap type and size

Tel (631) 727-0300 • Fax (631) 369-5939 • www.kapsall.com
