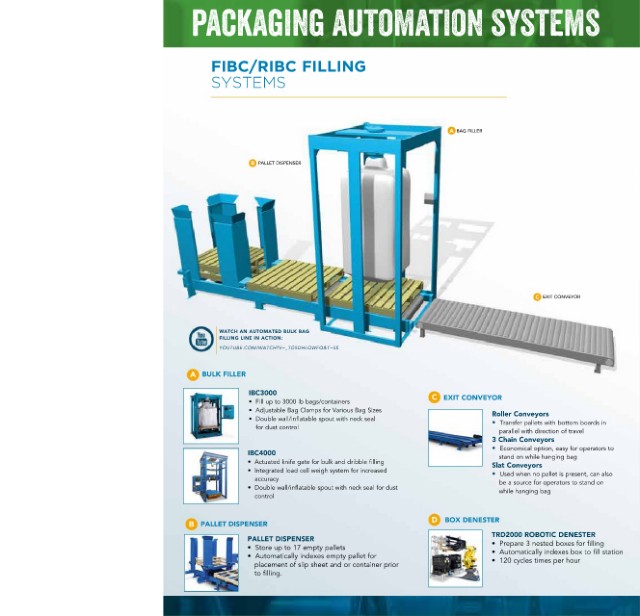

packaging automation systems
FIBC/RIBC FILLING FIBC/RIBC UNLOADING
SYSTEMS SYSTEMS

A BAG FILLER
A BAG UNLOADER
B PALLET DISPENSER

B DISCHARGE DEVICE -
FLEX AUGER CONVEYOR
C EXIT CONVEYOR
WATCH AN AUTOMATED BULK BAG
FILLING LINE IN ACTION:
YOUTUBE.COM/WATCH?V=_TG5DHLQWFQ&T=5S
A BULK FILLER
IBC3000 C EXIT CONVEYOR
• Fill up to 3000 lb bags/containers WATCH THE BULK BAG UNLOADER
• Adjustable Bag Clamps for Various Bag Sizes Roller Conveyors HIGHLIGHT VIDEO
• Double wall/inflatable spout with neck seal • Transfer pallets with bottom boards in YOUTUBE.COM/WATCH?V=SIZZYDUJICC&T=5S
for dust control
parallel with direction of travel
3 Chain Conveyors
• Economical option, easy for operators to
IBC4000 stand on while hanging bag A BAG UNLOADER B DISCHARGE OPTIONS
• Actuated knife gate for bulk and dribble filling Slat Conveyors
• Integrated load cell weigh system for increased • Used when no pallet is present, can also IBC2000 - Fork Lift Frame Gravity Discharge Options
accuracy • Up to 4000 lb capacity • Mechanical Conveyor
• Double wall/inflatable spout with neck seal for dust be a source for operators to stand on • Bag pan protects operators during product • Drag Conveyor
while hanging bag
control discharge • Flex Auger Conveyor
• Untie box for easy bag spout access and dust • Volumetric Feeder
collection port • Loss-in-weight Feeder
D BOX DENESTER
B PALLET DISPENSER • Rotary Valve
TRD2000 ROBOTIC DENESTER
PALLET DISPENSER • Prepare 3 nested boxes for filling IBC2000 - Hoist & Trolley Frame Pneumatic Discharge Options
• Store up to 17 empty pallets • Automatically indexes box to fill station • Up to 4000 lb capacity • Vacuum Conveying System with Airlock
• Automatically indexes empty pallet for • 120 cycles times per hour • Hoist and Trolley with UPD for ease of
placement of slip sheet and or container prior handling bag during loading and unloading
to filling. • Bag pan and Untie box
