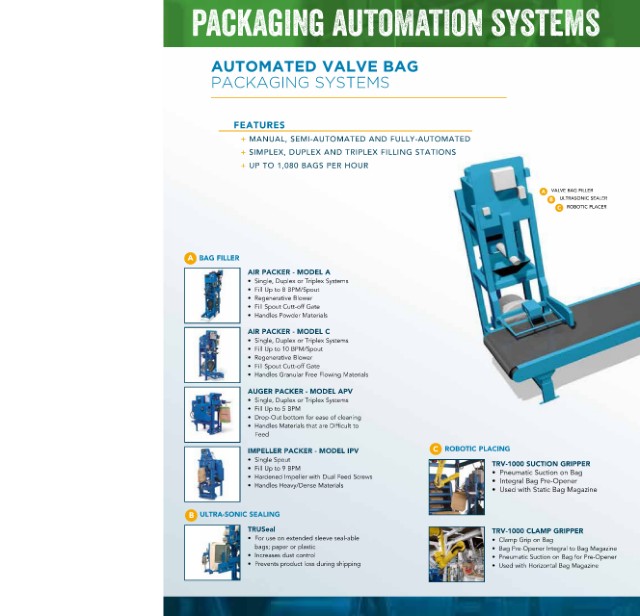

packaging automation systems
AUTOMATED VALVE BAG
PACKAGING SYSTEMS
F ROBOTIC
PALLETIZER
FEATURES
+ MANUAL, SEMI-AUTOMATED AND FULLY-AUTOMATED
+ SIMPLEX, DUPLEX AND TRIPLEX FILLING STATIONS
+ UP TO 1,080 BAGS PER HOUR
A VALVE BAG FILLER
B ULTRASONIC SEALER
C ROBOTIC PLACER
A BAG FILLER PICKING
CONVEYOR
AIR PACKER - MODEL A
• Single, Duplex or Triplex Systems PALLET
• Fill Up to 8 BPM/Spout E BAG HANDLING - STACKING
ZONE
• Regenerative Blower BAG FLATTENER
• Fill Spout Cutt-off Gate
• Handles Powder Materials
AIR PACKER - MODEL C
• Single, Duplex or Triplex Systems D BAG HANDLING -
CROSS CONVEYOR
• Fill Up to 10 BPM/Spout
• Regenerative Blower
• Fill Spout Cutt-off Gate
• Handles Granular Free Flowing Materials
WATCH AN AUTOMATED VALVE BAG SYSTEM
PACKAGE PLASTIC RESIN:
AUGER PACKER - MODEL APV
• Single, Duplex or Triplex Systems YOUTUBE.COM/WATCH?V=KZ_OXAJQCKM
• Fill Up to 5 BPM
• Drop-Out bottom for ease of cleaning
• Handles Materials that are Difficult to
Feed
IMPELLER PACKER - MODEL IPV C ROBOTIC PLACING D BAG HANDLING F PALLETIZING
• Single Spout TRV-1000 SUCTION GRIPPER CROSS CONVEYOR TRP3000 ROBOTIC PALLETIZER
• Fill Up to 9 BPM • Pneumatic Suction on Bag • Wire Mesh or Flat Belt • Palletize up to 27 BPM
• Hardened Impeller with Dual Feed Screws • Integral Bag Pre-Opener • Cross Bar • Pick from 1 or 2 locations
• Handles Heavy/Dense Materials
• Used with Static Bag Magazine • Place in up to 3 locations
• MRPT End Effector
- Auto Adjustment between bag widths
B ULTRA-SONIC SEALING - Integral pallet forks and slip sheet
handling option available
TRUSeal TRV-1000 CLAMP GRIPPER BAG FLATTENER
• For use on extended sleeve seal-able • Clamp Grip on Bag • Condition filled bag for palletizer LIFT TABLE
bags; paper or plastic • Bag Pre-Opener Integral to Bag Magazine • PVC Flat Belts • Fixed or Adjustable Height
• Increases dust control • Pneumatic Suction on Bag for Pre-Opener • Compression Type • Square or Round Options
• Prevents product loss during shipping • Used with Horizontal Bag Magazine
