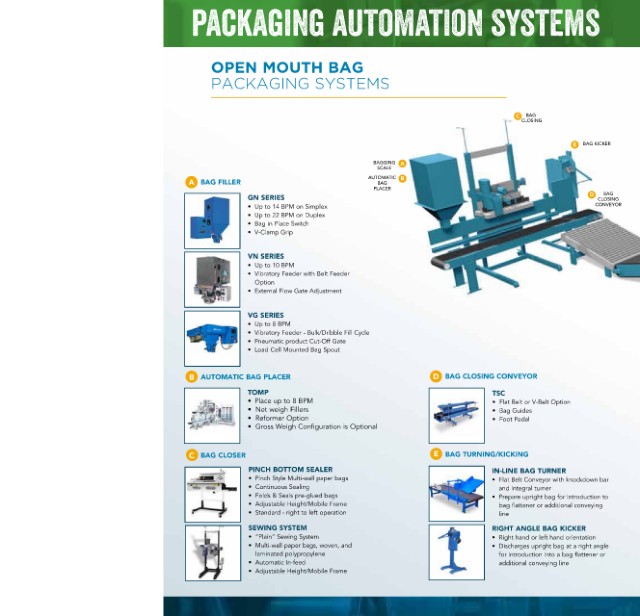

packaging automation systems
OPEN MOUTH BAG
PACKAGING SYSTEMS
BAG
FEATURES
C CLOSING
+ SEMI-AUTOMATED AND FULLY-AUTOMATED OPTIONS
E BAG KICKER + SIMPLEX, DUPLEX AND TRIPLEX FILLING
+ HANDLE PELLETS, GRANULES, AND ERRATIC FLOWING
BAGGING A
SCALE
MATERIALS
AUTOMATIC B
A BAG FILLER BAG
PLACER + UP TO 1,440 BAGS PER HOUR
D BAG
GN SERIES CLOSING
• Up to 14 BPM on Simplex CONVEYOR
• Up to 22 BPM on Duplex
• Bag in Place Switch INCLINE
• V-Clamp Grip CONVEYOR
GRAVITY
ROLLER
CONVEYOR
VN SERIES
• Up to 10 BPM
• Vibratory Feeder with Belt Feeder WORK
Option TABLE
• External Flow Gate Adjustment
VG SERIES
• Up to 8 BPM
• Vibratory Feeder - Bulk/Dribble Fill Cycle
• Pneumatic product Cut-Off Gate
• Load Cell Mounted Bag Spout
B AUTOMATIC BAG PLACER D BAG CLOSING CONVEYOR
TOMP TSC
• Place up to 8 BPM • Flat Belt or V-Belt Option F EZ LIFT
• Net weigh Fillers • Bag Guides PALLETIZING
• Reformer Option • Foot Pedal TABLE
• Gross Weigh Configuration is Optional
C BAG CLOSER E BAG TURNING/KICKING
PINCH BOTTOM SEALER IN-LINE BAG TURNER
• Pinch Style Multi-wall paper bags • Flat Belt Conveyor with knockdown bar
• Continuous Sealing and integral turner
• Folds & Seals pre-glued bags • Prepare upright bag for introduction to
• Adjustable Height/Mobile Frame bag flattener or additional conveying
• Standard - right to left operation line F PALLETIZING
SEWING SYSTEM RIGHT ANGLE BAG KICKER LIFT TABLE TRP3000 PALLETIZER
• “Plain” Sewing System • Right hand or left hand orientation • Fixed or Adjustable Height • Palletize up to 27 BPM
• Multi-wall paper bags, woven, and • Discharges upright bag at a right angle • Square or Round Options • Pick from 1 or 2 locations
laminated polypropylene for introduction into a bag flattener or • Place in up to 3 locations
• Automatic In-feed additional conveying line • MRPT End Effector
• Adjustable Height/Mobile Frame - Auto Adjustment between bag widths
- Integral pallet forks and slip sheet
handling option available
