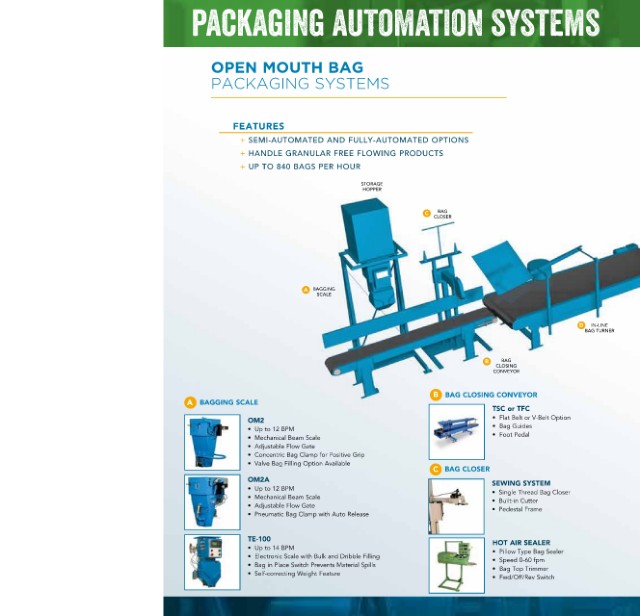

packaging automation systems
OPEN MOUTH BAG
PACKAGING SYSTEMS F PALLETIZER
ROBOTIC
FEATURES
+ SEMI-AUTOMATED AND FULLY-AUTOMATED OPTIONS
PICKING
+ HANDLE GRANULAR FREE FLOWING PRODUCTS CONVEYOR
PACING
+ UP TO 840 BAGS PER HOUR CONVEYOR
STORAGE
HOPPER
C BAG
CLOSER
PALLET FRAME
E BAG
FLATTENER
A BAGGING
SCALE
D IN-LINE
WATCH THE TE100 ELECTRONIC
BAG TURNER
BAGGING SCALE BAG MIXED CORN:
YOUTUBE.COM/WATCH?V=U7ZPKF5GPA8&T=8S
B BAG
CLOSING
CONVEYOR
D BAG TURNING/KICKING
B BAG CLOSING CONVEYOR
A BAGGING SCALE
TSC or TFC IN-LINE BAG TURNER
• Flat Belt or V-Belt Option • Flat Belt Conveyor with knockdown bar
OM2 and integral turner
• Up to 12 BPM • Bag Guides • Prepare upright bag for introduction to
• Mechanical Beam Scale • Foot Pedal bag flattener or additional conveying
• Adjustable Flow Gate line F PALLETIZING
• Concentric Bag Clamp for Positive Grip
• Valve Bag Filling Option Available RIGHT ANGLE BAG KICKER TRP3000 ROBOTIC PALLETIZER
C BAG CLOSER • Right hand or left hand orientation • Palletize up to 27 BPM
OM2A SEWING SYSTEM • Discharges upright bag at a right angle • Pick from 1 or 2 locations
• Up to 12 BPM • Single Thread Bag Closer for introduction into a bag flattener or • Place in up to 3 locations
• Mechanical Beam Scale • Built-in Cutter additional conveying line • MRPT End Effector
• Adjustable Flow Gate • Pedestal Frame - Auto Adjustment between bag widths
• Pneumatic Bag Clamp with Auto Release - Integral pallet forks and slip sheet
handling option available
E BAG FLATTENER
TE-100 HOT AIR SEALER Bag Flattener LIFT TABLE
• Up to 14 BPM • Pillow Type Bag Sealer • Condition filled bag for palletizer • Fixed or Adjustable Height
• Electronic Scale with Bulk and Dribble Filling • Speed 0-60 fpm • PVC Flat Belts • Square or Round Options
• Bag in Place Switch Prevents Material Spills • Bag Top Trimmer • Compression Type
• Self-correcting Weight Feature
• Fwd/Off/Rev Switch
