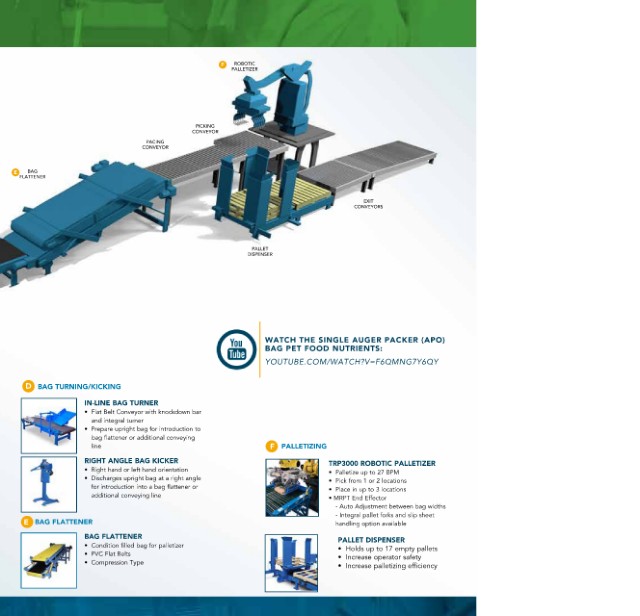

packaging automation systems
OPEN MOUTH BAG F PALLETIZER
ROBOTIC
PACKAGING SYSTEMS
FEATURES PICKING
CONVEYOR
+ SEMI-AUTOMATED AND FULLY-AUTOMATED OPTIONS PACING
CONVEYOR
+ HANDLE POWDERS AND MODERATELY FLOWING MATERIALS
+ UP TO 360 BAGS PER HOUR
E BAG
FLATTENER
B BAG EXIT
CLOSER
CONVEYORS
A BAG
FILLER
PALLET
DISPENSER
IN-LINE
D BAG TURNER
C BAG
CLOSING WATCH THE SINGLE AUGER PACKER (APO)
CONVEYOR BAG PET FOOD NUTRIENTS:
YOUTUBE.COM/WATCH?V=F6QMNG7Y6QY
B BAG CLOSER D BAG TURNING/KICKING
A BAG FILLER PINCH BOTTOM SEALER IN-LINE BAG TURNER
• Pinch Style Multi-wall paper bags • Flat Belt Conveyor with knockdown bar
AUGER PACKER - MODEL APO • Continuous Sealing and integral turner
• Up to 4 BPM • Folds & Seals pre-glued bags • Prepare upright bag for introduction to
• Variable Speed Auger - Bulk/Dribble Fill Cycle • Adjustable Height/Mobile Frame bag flattener or additional conveying
• Inflatable Bag Spout for Dust Control • Standard - right to left operation line F PALLETIZING
SEWING SYSTEM RIGHT ANGLE BAG KICKER TRP3000 ROBOTIC PALLETIZER
• “Plain” Sewing System • Right hand or left hand orientation
AUGER PACKER DUAL - MODEL APOD • Multi-wall paper bags, woven, and • Discharges upright bag at a right angle • Palletize up to 27 BPM
• Pick from 1 or 2 locations
• Up to 5 BPM laminated polypropylene for introduction into a bag flattener or • Place in up to 3 locations
• Dual Augers - Bulk and Dribble Fill Cycle • Automatic In-feed additional conveying line • MRPT End Effector
• Drop out Bottom for ease of cleaning • Adjustable Height/Mobile Frame - Auto Adjustment between bag widths
• Inflatable Bag Spout for Dust Control - Integral pallet forks and slip sheet
C BAG CLOSING CONVEYOR E BAG FLATTENER handling option available
INCLINE AUGER PACKER - MODEL IAPO TSC BAG FLATTENER PALLET DISPENSER
• Condition filled bag for palletizer
• Up to 6 BPM • Flat Belt • PVC Flat Belts • Holds up to 17 empty pallets
• Large Loading Hopper • Bag Guides • Increase operator safety
• Variable Speed Auger - Bulk/Dribble Fill Cycle • Foot Pedal • Compression Type • Increase palletizing efficiency
• Pneumatic Product Cut-Off Gate
