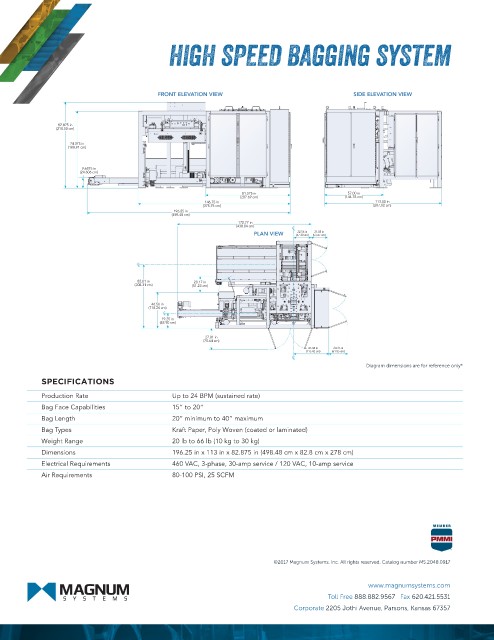

HIGH SPEED BAGGING SYSTEM

FRONT ELEVATION VIEW SIDE ELEVATION VIEW

82.875 in
(210.50 cm)
74.375 in
(188.91 cm)

9.6875 in
(24.606 cm)

81.375 in 57.00 in
(207.69 cm) (144.78 cm)
146.75 in 113.00 in
(375.75 cm) (287.02 cm)
196.25 in
(498.48 cm)
172.77 in
(438.84 cm)
PLAN VIEW (57.30 cm) (53.47 cm)
22.56 in
21.05 in

82.01 in 20.17 in
(208.31 cm) (51.23 cm)

46.56 in
(118.26 cm)
19.25 in
(48.90 cm)
27.81 in
(70.64 cm)
45.44 in 24.35 in
(115.42 cm) (61.85 cm)
Diagram dimensions are for reference only*
SPECIFICATIONS

Production Rate Up to 24 BPM (sustained rate)
Bag Face Capabilities 15” to 20“
Bag Length 20” minimum to 40” maximum
Bag Types Kraft Paper, Poly Woven (coated or laminated)
Weight Range 20 lb to 66 lb (10 kg to 30 kg)
Dimensions 196.25 in x 113 in x 82.875 in (498.48 cm x 82.8 cm x 278 cm)
Electrical Requirements 460 VAC, 3-phase, 30-amp service / 120 VAC, 10-amp service
Air Requirements 80-100 PSI, 25 SCFM
