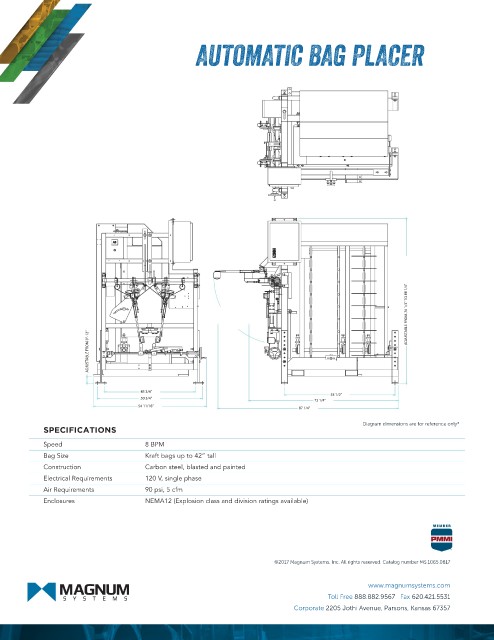

AUTOMATIC BAG PLACER
ADJUSTABLE FROM 76 1/4" TO 88 1/4"
ADJUSTABLE FROM 0"-12"
43 3/4"
53 1/2"
50 3/4"
72 1/4"
54 11/16" 87 1/4"
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed 8 BPM
Bag Size Kraft bags up to 42” tall
Construction Carbon steel, blasted and painted
Electrical Requirements 120 V, single phase
Air Requirements 90 psi, 5 cfm
Enclosures NEMA12 (Explosion class and division ratings available)
©2017 Magnum Systems, Inc. All rights reserved. Catalog number MS.1065.0817
www.magnumsystems.com
Toll Free 888.882.9567 Fax 620.421.5531
Corporate 2205 Jothi Avenue, Parsons, Kansas 67357
