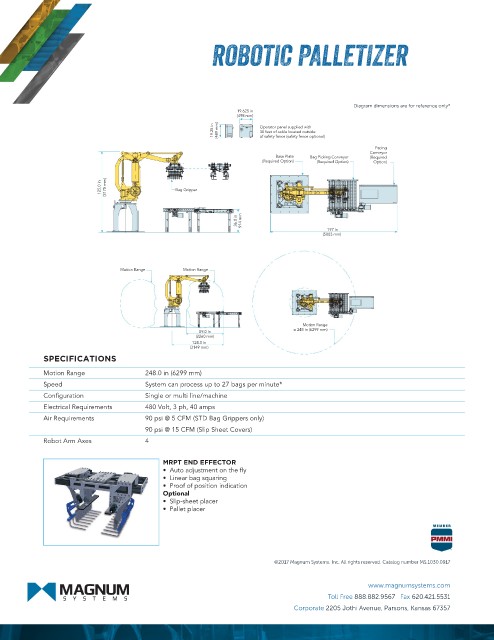

ROBOTIC PALLETIZER

Diagram dimensions are for reference only*
19.625 in
(498 mm)
19.25 in (489 mm) Operator panel supplied with
30 feet of cable located outside
of safety fence (safety fence optional)
Pacing
Conveyor
Base Plate Bag Picking Conveyor (Required
(Required Option) (Required Option) Option)

125.0 in (3175 mm) Bag Gripper

36.0 in 914 mm
197 in
(5003 mm)

Motion Range Motion Range

Motion Range
89.0 in ø 248 in (6299 mm)
(2260 mm)
124.0 in
(3149 mm)
SPECIFICATIONS
Motion Range 248.0 in (6299 mm)
Speed System can process up to 27 bags per minute*
Configuration Single or multi line/machine
Electrical Requirements 480 Volt, 3 ph, 40 amps
Air Requirements 90 psi @ 5 CFM (STD Bag Grippers only)
90 psi @ 15 CFM (Slip Sheet Covers)
Robot Arm Axes 4

MRPT END EFFECTOR
• Auto adjustment on the fly
• Linear bag squaring
• Proof of position indication
Optional
• Slip-sheet placer
• Pallet placer
