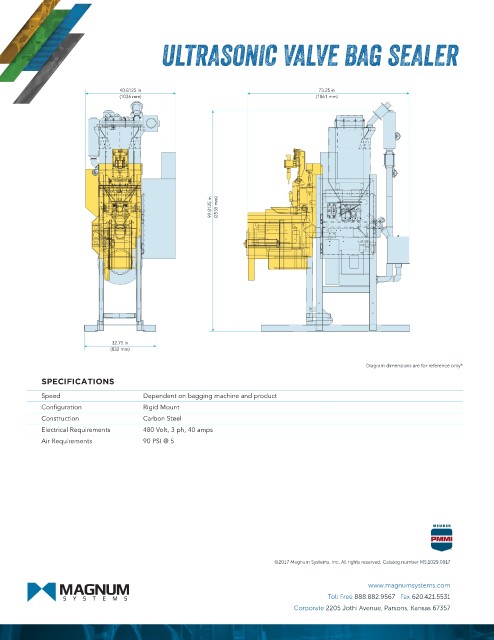

ULTRASONIC VALVE BAG SEALER
40.8125 in 73.25 in
(1036 mm) (1861 mm)
99.8125 in (2535 mm)
32.75 in
(832 mm)
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Dependent on bagging machine and product
Configuration Rigid Mount
Construction Carbon Steel
Electrical Requirements 480 Volt, 3 ph, 40 amps
Air Requirements 90 PSI @ 5
©2017 Magnum Systems, Inc. All rights reserved. Catalog number MS.1029.0917
www.magnumsystems.com
Toll Free 888.882.9567 Fax 620.421.5531
Corporate 2205 Jothi Avenue, Parsons, Kansas 67357
