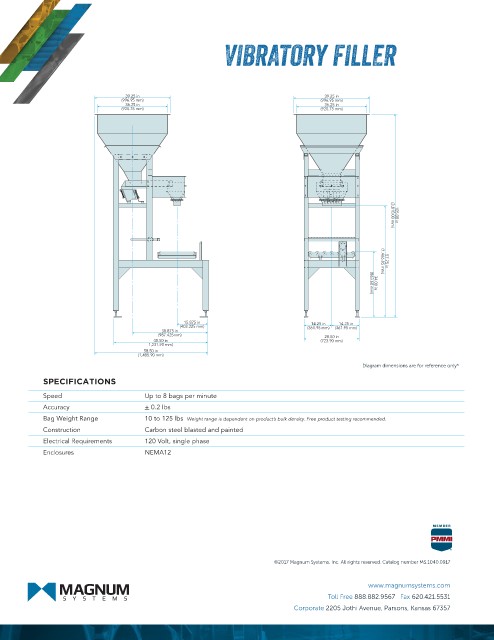

VIBRATORY FILLER

39.25 in 39.25 in
(996.95 mm) (996.95 mm)
36.25 in 36.25 in
(920.75 mm) (920.75 mm)

15.875 in 14.25 in 14.25 in (863.60 mm) 34.00 in (1,466.85 mm) 57.75 in (3,810.00 mm) 105.00 in
(403.225 mm) (361.95 mm) (361.95 mm)
38.875 in
(987.425mm) 28.50 in
48.50 in (723.90 mm)
1,231.90 mm)
58.50 in
(1,485.90 mm)
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Up to 8 bags per minute
Accuracy + 0.2 lbs
Bag Weight Range 10 to 125 lbs Weight range is dependent on product’s bulk density. Free product testing recommended.
Construction Carbon steel blasted and painted
Electrical Requirements 120 Volt, single phase
Enclosures NEMA12

©2017 Magnum Systems, Inc. All rights reserved. Catalog number MS.1040.0917

www.magnumsystems.com
Toll Free 888.882.9567 Fax 620.421.5531
Corporate 2205 Jothi Avenue, Parsons, Kansas 67357
