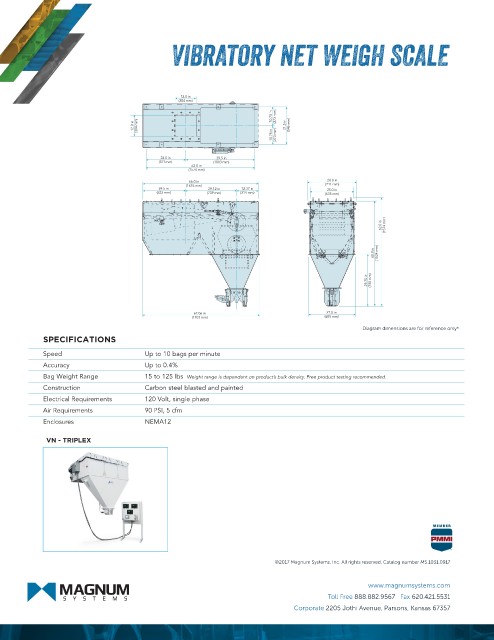

VIBRATORY NET WEIGH SCALE
12.0 in
(304 mm)
10.75 in (273 mm)
12.0 in (304 mm) 21.5 in (546 mm)
10.75 in (273 mm)
22.5 in 39.5 in
(571mm) (1003 mm)
62.0 in
(1574 mm)
66.0 in 28.0 in
(1676 mm) (711 mm)
24.5 in 29.12 in 12.37 in 25.0 in
(622 mm) (739 mm) (314 mm) (635 mm)
62.0 in (1574 mm)
60.0 in (1524 mm)
29.75 in (755 mm)
67.06 in 27.0 in
(1703 mm) (685 mm)
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Up to 10 bags per minute
Accuracy Up to 0.4%
Bag Weight Range 15 to 125 lbs Weight range is dependent on product’s bulk density. Free product testing recommended.
Construction Carbon steel blasted and painted
Electrical Requirements 120 Volt, single phase
Air Requirements 90 PSI, 5 cfm
Enclosures NEMA12
VN - TRIPLEX
