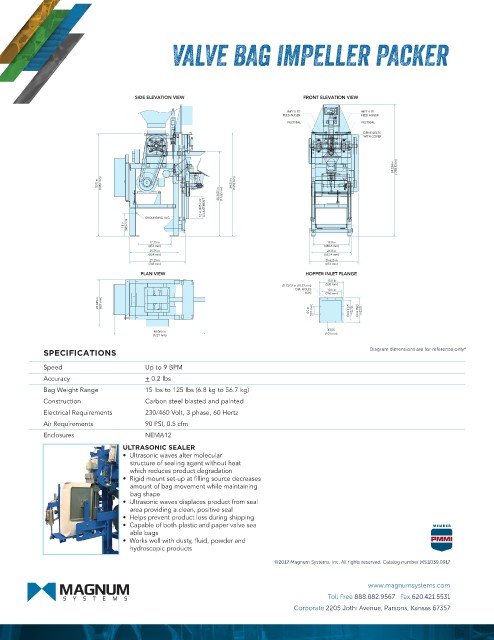

VALVE BAG IMPELLER PACKER

SIDE ELEVATION VIEW FRONT ELEVATION VIEW
IMPELLER IMPELLER
"0"
FEED AUGER "0" FEED AUGER
FELTSEAL FELTSEAL
DRIVE BELTS
WITH COVER

69.234 in (1758.5 mm)

53.5 in (1359 mm) 54.25 in (1378 mm)
44.5625 in (1132 mm)
12 in (305 mm) ADJUSTMENT

GROUNDING LUG
12 in (305 mm)
17.75 in 19.0 in
(451 mm) (480.6 mm)
25.75 in 21.0 in
(654 mm) (533.4 mm)
29.25 in 25.625 in
(743 mm) (651 mm)
PLAN VIEW HOPPER INLET FLANGE
13.0 in
Ø 13/32 in (10.32 mm) (330 mm)
DIA. HOLES 10.5 in
(12X) (266 mm)
25.625 in (651 mm)
4.0 in (101 mm) (273 mm) 10.75 in (336 mm) 13.25 in
48.063 in 4.0 in
(1221 mm) (101 mm)
SPECIFICATIONS Diagram dimensions are for reference only*
Speed Up to 9 BPM
Accuracy + 0.2 lbs
Bag Weight Range 15 lbs to 125 lbs (6.8 kg to 56.7 kg)
Construction Carbon steel blasted and painted
Electrical Requirements 230/460 Volt, 3 phase, 60 Hertz
Air Requirements 90 PSI, 0.5 cfm
Enclosures NEMA12
ULTRASONIC SEALER
• Ultrasonic waves alter molecular
structure of sealing agent without heat
which reduces product degradation
• Rigid mount set-up at filling source decreases
amount of bag movement while maintaining
bag shape
• Ultrasonic waves displaces product from seal
area providing a clean, positive seal
• Helps prevent product loss during shipping
• Capable of both plastic and paper valve sea
able bags
• Works well with dusty, fluid, powder and
hydroscopic products
©2017 Magnum Systems, Inc. All rights reserved. Catalog number MS.1039.0917
