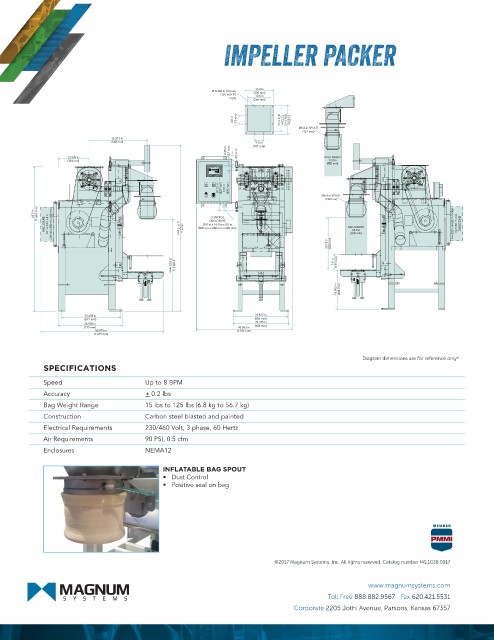

IMPELLER PACKER

13.0 in
Ø 0.406 in (10 mm) (330 mm)
DIA. HOLES 10.5 in
(12X) (266 mm)
4.0 in (101 mm) (273 mm) 10.75 in (336 mm) 13.25 in
Ø5.0 in SPOUT
(127 mm)
26.313 in
(668 mm) (101 mm)
4.0 in
2.25 in (57 mm) 1 in (25 mm)
13.938 in BAG LENGTH
(354 mm) 19.0 in
(482 mm)
20.75 in (527 mm) 19.5 in (495 mm)
Ø6.0 in SPOUT
(152 mm)
65.5 in (1,663 mm) CONTROL
ENCLOSURE 16 in x 14 in x 8 in (406 mm x 355mm x 203 mm) (1,911 mm) 75.25 in (508 mm x 406 mm x 208 mm) BAG LENGTH (406 mm x 355mm x 203 mm) 16 in x 14 in x 8 in ENCLOSURE
ENCLOSURE
20.0 in x 16.0 in x 8.0 in
24.0 in
(609 mm)
23.75 in (603 mm)
7.0 in (177 mm)
41.813 in
(1,062 mm)
18.063 in (458 mm)

26.688 in 23.875 in
(677 mm) (606 mm)
25.375 in
28.938 in
(735 mm) 43.563 in (644 mm)
55.875 in (1,106 mm)
(1,419 mm)
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Up to 8 BPM
Accuracy + 0.2 lbs
Bag Weight Range 15 lbs to 125 lbs (6.8 kg to 56.7 kg)
Construction Carbon steel blasted and painted
Electrical Requirements 230/460 Volt, 3 phase, 60 Hertz
Air Requirements 90 PSI, 0.5 cfm
Enclosures NEMA12

INFLATABLE BAG SPOUT
• Dust Control
• Positive seal on bag
