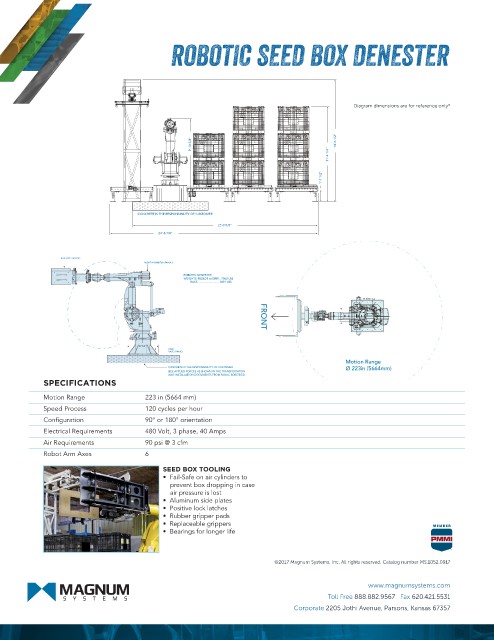

ROBOTIC SEED BOX DENESTER

Diagram dimensions are for reference only*

9'-10 5/8" 14'-6 1/2"
11'-4 1/4"
WEIGHT.
R
1'-7 1/2"

CONCRETE IS THE RESPONSIBILITY OF CUSTOMER
22'-0 5/8"
24'-8 7/8"

BOX GRIP ( TAYLOR )
ROBOT M-900IB/700 ( FANUC )
ROBOTIC DENESTER
WEIGHTS: ROBOT w/GRIP....7000 LBS
BASE............................1831 LBS
17 5/16"
17 5/16"

FRONT
47 1/4"
RISER
BASE ( FANUC )
Motion Range
CONCRETE IS THE RESPONSIBILITY OF CUSTOMER Ø 223in (5664mm)
(SEE APPLIED FORCES AS SHOWN IN THE TRANSPORTATION
AND INSTALLATION DOCUMENTS FROM FANUC ROBOTICS)
SPECIFICATIONS
Motion Range 223 in (5664 mm)
Speed Process 120 cycles per hour
Configuration 90° or 180° orientation
Electrical Requirements 480 Volt, 3 phase, 40 Amps
Air Requirements 90 psi @ 3 cfm
Robot Arm Axes 6
SEED BOX TOOLING
• Fail-Safe on air cylinders to
prevent box dropping in case
air pressure is lost
• Aluminum side plates
• Positive lock latches
• Rubber gripper pads
• Replaceable grippers
• Bearings for longer life
