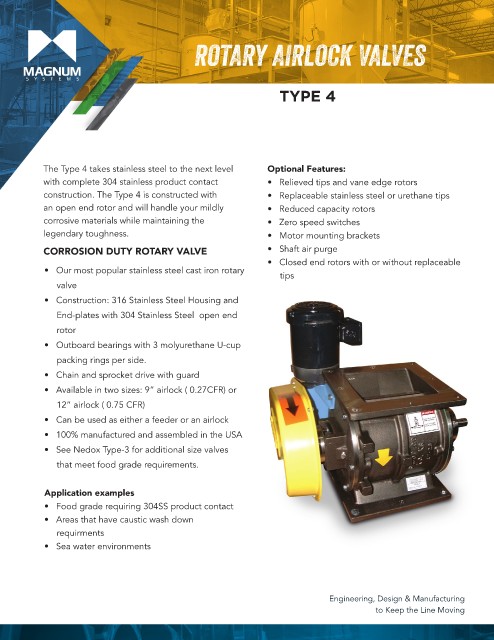

ROTARY AIRLOCK VALVES

TYPE 4

The Type 4 takes stainless steel to the next level Optional Features:
with complete 304 stainless product contact • Relieved tips and vane edge rotors
construction. The Type 4 is constructed with • Replaceable stainless steel or urethane tips
an open end rotor and will handle your mildly • Reduced capacity rotors
corrosive materials while maintaining the • Zero speed switches
legendary toughness. • Motor mounting brackets

CORROSION DUTY ROTARY VALVE • Shaft air purge
• Closed end rotors with or without replaceable
• Our most popular stainless steel cast iron rotary
tips
valve

• Construction: 316 Stainless Steel Housing and
End-plates with 304 Stainless Steel open end
rotor
• Outboard bearings with 3 molyurethane U-cup

packing rings per side.
• Chain and sprocket drive with guard

• Available in two sizes: 9” airlock ( 0.27CFR) or
12” airlock ( 0.75 CFR)
• Can be used as either a feeder or an airlock
• 100% manufactured and assembled in the USA

• See Nedox Type-3 for additional size valves
that meet food grade requirements.

Application examples
• Food grade requiring 304SS product contact
• Areas that have caustic wash down
requirments
• Sea water environments

Engineering, Design & Manufacturing
to Keep the Line Moving
