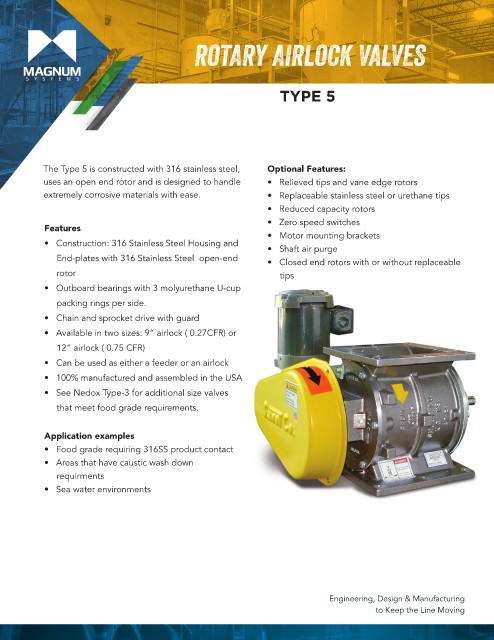

ROTARY AIRLOCK VALVES

TYPE 5

The Type 5 is constructed with 316 stainless steel, Optional Features:
uses an open end rotor and is designed to handle • Relieved tips and vane edge rotors
extremely corrosive materials with ease. • Replaceable stainless steel or urethane tips

• Reduced capacity rotors
• Zero speed switches
Features
• Motor mounting brackets
• Construction: 316 Stainless Steel Housing and
• Shaft air purge
End-plates with 316 Stainless Steel open-end • Closed end rotors with or without replaceable
rotor tips

• Outboard bearings with 3 molyurethane U-cup
packing rings per side.
• Chain and sprocket drive with guard

• Available in two sizes: 9” airlock ( 0.27CFR) or
12” airlock ( 0.75 CFR)
• Can be used as either a feeder or an airlock

• 100% manufactured and assembled in the USA
• See Nedox Type-3 for additional size valves
that meet food grade requirements.

Application examples
• Food grade requiring 316SS product contact
• Areas that have caustic wash down
requirments
• Sea water environments

Engineering, Design & Manufacturing
to Keep the Line Moving
