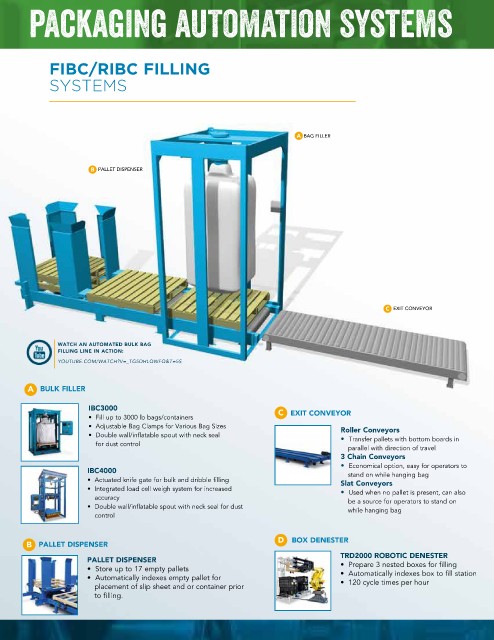

packaging automation systems
FIBC/RIBC FILLING
SYSTEMS
A BAG FILLER
B PALLET DISPENSER
C EXIT CONVEYOR
WATCH AN AUTOMATED BULK BAG
FILLING LINE IN ACTION:
YOUTUBE.COM/WATCH?V=_TG5DHLQWFQ&T=5S
A BULK FILLER
IBC3000
• Fill up to 3000 lb bags/containers C EXIT CONVEYOR
• Adjustable Bag Clamps for Various Bag Sizes Roller Conveyors
• Double wall/inflatable spout with neck seal • Transfer pallets with bottom boards in
for dust control
parallel with direction of travel
3 Chain Conveyors
• Economical option, easy for operators to
IBC4000 stand on while hanging bag
• Actuated knife gate for bulk and dribble filling Slat Conveyors
• Integrated load cell weigh system for increased • Used when no pallet is present, can also
accuracy be a source for operators to stand on
• Double wall/inflatable spout with neck seal for dust while hanging bag
control
D BOX DENESTER
B PALLET DISPENSER
TRD2000 ROBOTIC DENESTER
PALLET DISPENSER • Prepare 3 nested boxes for filling
• Store up to 17 empty pallets
• Automatically indexes empty pallet for • Automatically indexes box to fill station
placement of slip sheet and or container prior • 120 cycle times per hour
to filling.
