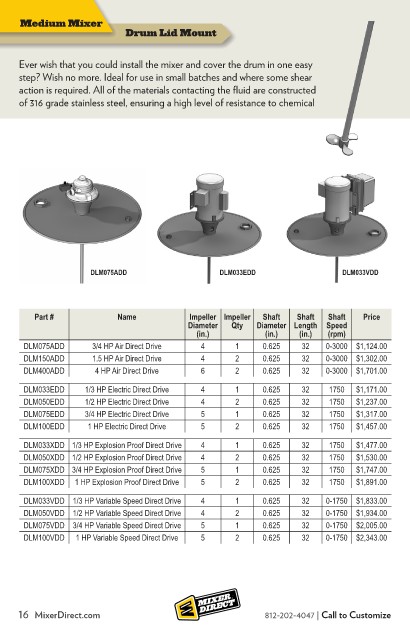

Page 2742 - Flipbook_SolidDesignSoutheast2020

Medium Mixer
Drum Lid Mount

Ever wish that you could install the mixer and cover the drum in one easy
step? Wish no more. Ideal for use in small batches and where some shear
action is required. All of the materials contacting the fluid are constructed
of 316 grade stainless steel, ensuring a high level of resistance to chemical

DLM075ADD DLM033EDD DLM033VDD

Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
DLM075ADD 3/4 HP Air Direct Drive 4 1 0.625 32 0-3000 $1,124.00
DLM150ADD 1.5 HP Air Direct Drive 4 2 0.625 32 0-3000 $1,302.00
DLM400ADD 4 HP Air Direct Drive 6 2 0.625 32 0-3000 $1,701.00
DLM033EDD 1/3 HP Electric Direct Drive 4 1 0.625 32 1750 $1,171.00
DLM050EDD 1/2 HP Electric Direct Drive 4 2 0.625 32 1750 $1,237.00
DLM075EDD 3/4 HP Electric Direct Drive 5 1 0.625 32 1750 $1,317.00
DLM100EDD 1 HP Electric Direct Drive 5 2 0.625 32 1750 $1,457.00
DLM033XDD 1/3 HP Explosion Proof Direct Drive 4 1 0.625 32 1750 $1,477.00
DLM050XDD 1/2 HP Explosion Proof Direct Drive 4 2 0.625 32 1750 $1,530.00
DLM075XDD 3/4 HP Explosion Proof Direct Drive 5 1 0.625 32 1750 $1,747.00
DLM100XDD 1 HP Explosion Proof Direct Drive 5 2 0.625 32 1750 $1,891.00
DLM033VDD 1/3 HP Variable Speed Direct Drive 4 1 0.625 32 0-1750 $1,833.00
DLM050VDD 1/2 HP Variable Speed Direct Drive 4 2 0.625 32 0-1750 $1,934.00
DLM075VDD 3/4 HP Variable Speed Direct Drive 5 1 0.625 32 0-1750 $2,005.00
DLM100VDD 1 HP Variable Speed Direct Drive 5 2 0.625 32 0-1750 $2,343.00

16 MixerDirect.com 812-202-4047 | Call to Customize
