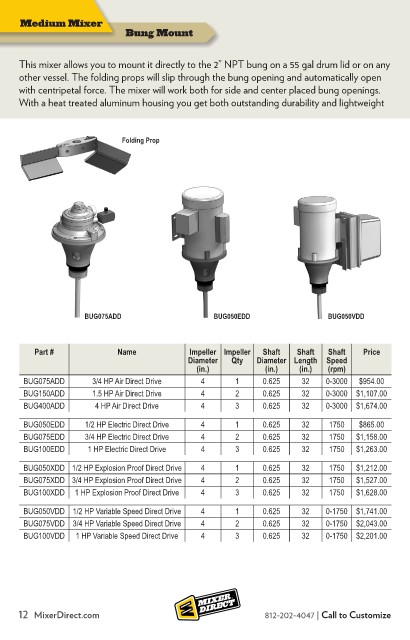

Medium Mixer
Bung Mount

This mixer allows you to mount it directly to the 2” NPT bung on a 55 gal drum lid or on any
other vessel. The folding props will slip through the bung opening and automatically open
with centripetal force. The mixer will work both for side and center placed bung openings.
With a heat treated aluminum housing you get both outstanding durability and lightweight

Folding Prop

BUG075ADD BUG050EDD BUG050VDD

Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
BUG075ADD 3/4 HP Air Direct Drive 4 1 0.625 32 0-3000 $954.00
BUG150ADD 1.5 HP Air Direct Drive 4 2 0.625 32 0-3000 $1,107.00
BUG400ADD 4 HP Air Direct Drive 4 3 0.625 32 0-3000 $1,674.00
BUG050EDD 1/2 HP Electric Direct Drive 4 1 0.625 32 1750 $865.00
BUG075EDD 3/4 HP Electric Direct Drive 4 2 0.625 32 1750 $1,158.00
BUG100EDD 1 HP Electric Direct Drive 4 3 0.625 32 1750 $1,263.00
BUG050XDD 1/2 HP Explosion Proof Direct Drive 4 1 0.625 32 1750 $1,212.00
BUG075XDD 3/4 HP Explosion Proof Direct Drive 4 2 0.625 32 1750 $1,527.00
BUG100XDD 1 HP Explosion Proof Direct Drive 4 3 0.625 32 1750 $1,628.00

BUG050VDD 1/2 HP Variable Speed Direct Drive 4 1 0.625 32 0-1750 $1,741.00
BUG075VDD 3/4 HP Variable Speed Direct Drive 4 2 0.625 32 0-1750 $2,043.00
BUG100VDD 1 HP Variable Speed Direct Drive 4 3 0.625 32 0-1750 $2,201.00

12 MixerDirect.com 812-202-4047 | Call to Customize
