packages, flange sizes, impellers and shaft lengths for your application. Standard models
include air, electric, explosion proof motors, 3 blade left handed propellers, and all 316SS
wetted parts.
For more details see www.MixerDirect.com or call 812-202-4047.

Looking for
Stainless
Steel Tanks?
See Page 30

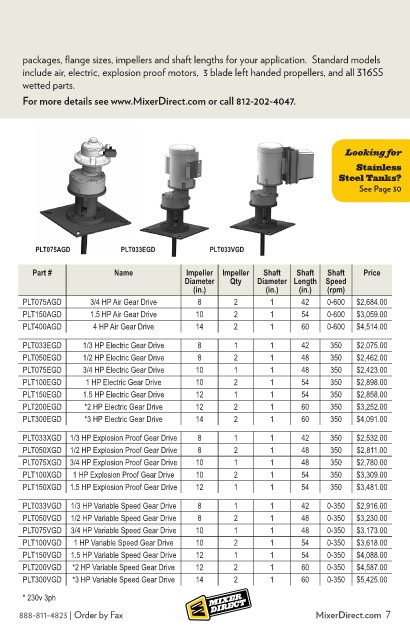

PLT075AGD PLT033EGD PLT033VGD
Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
PLT075AGD 3/4 HP Air Gear Drive 8 2 1 42 0-600 $2,684.00
PLT150AGD 1.5 HP Air Gear Drive 10 2 1 54 0-600 $3,059.00
PLT400AGD 4 HP Air Gear Drive 14 2 1 60 0-600 $4,514.00
PLT033EGD 1/3 HP Electric Gear Drive 8 1 1 42 350 $2,075.00
PLT050EGD 1/2 HP Electric Gear Drive 8 2 1 48 350 $2,462.00
PLT075EGD 3/4 HP Electric Gear Drive 10 1 1 48 350 $2,423.00
PLT100EGD 1 HP Electric Gear Drive 10 2 1 54 350 $2,898.00
PLT150EGD 1.5 HP Electric Gear Drive 12 1 1 54 350 $2,858.00
PLT200EGD *2 HP Electric Gear Drive 12 2 1 60 350 $3,252.00
PLT300EGD *3 HP Electric Gear Drive 14 2 1 60 350 $4,091.00
PLT033XGD 1/3 HP Explosion Proof Gear Drive 8 1 1 42 350 $2,532.00
PLT050XGD 1/2 HP Explosion Proof Gear Drive 8 2 1 48 350 $2,811.00
PLT075XGD 3/4 HP Explosion Proof Gear Drive 10 1 1 48 350 $2,780.00
PLT100XGD 1 HP Explosion Proof Gear Drive 10 2 1 54 350 $3,309.00
PLT150XGD 1.5 HP Explosion Proof Gear Drive 12 1 1 54 350 $3,481.00
PLT033VGD 1/3 HP Variable Speed Gear Drive 8 1 1 42 0-350 $2,916.00
PLT050VGD 1/2 HP Variable Speed Gear Drive 8 2 1 48 0-350 $3,230.00
PLT075VGD 3/4 HP Variable Speed Gear Drive 10 1 1 48 0-350 $3,173.00
PLT100VGD 1 HP Variable Speed Gear Drive 10 2 1 54 0-350 $3,618.00
PLT150VGD 1.5 HP Variable Speed Gear Drive 12 1 1 54 0-350 $4,088.00
PLT200VGD *2 HP Variable Speed Gear Drive 12 2 1 60 0-350 $4,587.00
PLT300VGD *3 HP Variable Speed Gear Drive 14 2 1 60 0-350 $5,425.00
* 230v 3ph
888-811-4823 | Order by Fax MixerDirect.com 7
