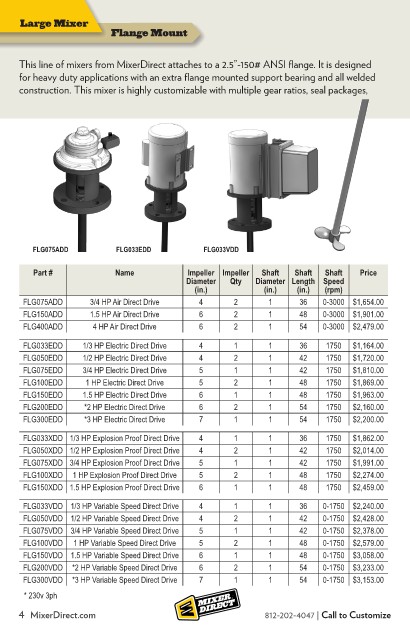

Large Mixer
Flange Mount

This line of mixers from MixerDirect attaches to a 2.5”-150# ANSI flange. It is designed
for heavy duty applications with an extra flange mounted support bearing and all welded
construction. This mixer is highly customizable with multiple gear ratios, seal packages,

FLG075ADD FLG033EDD FLG033VDD
Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
FLG075ADD 3/4 HP Air Direct Drive 4 2 1 36 0-3000 $1,654.00
FLG150ADD 1.5 HP Air Direct Drive 6 2 1 48 0-3000 $1,901.00
FLG400ADD 4 HP Air Direct Drive 6 2 1 54 0-3000 $2,479.00
FLG033EDD 1/3 HP Electric Direct Drive 4 1 1 36 1750 $1,164.00
FLG050EDD 1/2 HP Electric Direct Drive 4 2 1 42 1750 $1,720.00
FLG075EDD 3/4 HP Electric Direct Drive 5 1 1 42 1750 $1,810.00
FLG100EDD 1 HP Electric Direct Drive 5 2 1 48 1750 $1,869.00
FLG150EDD 1.5 HP Electric Direct Drive 6 1 1 48 1750 $1,963.00
FLG200EDD *2 HP Electric Direct Drive 6 2 1 54 1750 $2,160.00
FLG300EDD *3 HP Electric Direct Drive 7 1 1 54 1750 $2,200.00
FLG033XDD 1/3 HP Explosion Proof Direct Drive 4 1 1 36 1750 $1,862.00
FLG050XDD 1/2 HP Explosion Proof Direct Drive 4 2 1 42 1750 $2,014.00
FLG075XDD 3/4 HP Explosion Proof Direct Drive 5 1 1 42 1750 $1,991.00
FLG100XDD 1 HP Explosion Proof Direct Drive 5 2 1 48 1750 $2,274.00
FLG150XDD 1.5 HP Explosion Proof Direct Drive 6 1 1 48 1750 $2,459.00
FLG033VDD 1/3 HP Variable Speed Direct Drive 4 1 1 36 0-1750 $2,240.00
FLG050VDD 1/2 HP Variable Speed Direct Drive 4 2 1 42 0-1750 $2,428.00
FLG075VDD 3/4 HP Variable Speed Direct Drive 5 1 1 42 0-1750 $2,378.00
FLG100VDD 1 HP Variable Speed Direct Drive 5 2 1 48 0-1750 $2,579.00
FLG150VDD 1.5 HP Variable Speed Direct Drive 6 1 1 48 0-1750 $3,058.00
FLG200VDD *2 HP Variable Speed Direct Drive 6 2 1 54 0-1750 $3,233.00
FLG300VDD *3 HP Variable Speed Direct Drive 7 1 1 54 0-1750 $3,153.00
* 230v 3ph

4 MixerDirect.com 812-202-4047 | Call to Customize
