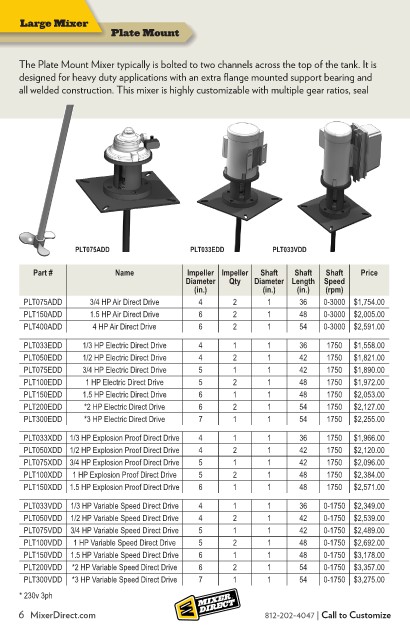

Large Mixer
Plate Mount

The Plate Mount Mixer typically is bolted to two channels across the top of the tank. It is
designed for heavy duty applications with an extra flange mounted support bearing and
all welded construction. This mixer is highly customizable with multiple gear ratios, seal

PLT075ADD PLT033EDD PLT033VDD
Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
PLT075ADD 3/4 HP Air Direct Drive 4 2 1 36 0-3000 $1,754.00
PLT150ADD 1.5 HP Air Direct Drive 6 2 1 48 0-3000 $2,005.00
PLT400ADD 4 HP Air Direct Drive 6 2 1 54 0-3000 $2,591.00
PLT033EDD 1/3 HP Electric Direct Drive 4 1 1 36 1750 $1,558.00
PLT050EDD 1/2 HP Electric Direct Drive 4 2 1 42 1750 $1,821.00
PLT075EDD 3/4 HP Electric Direct Drive 5 1 1 42 1750 $1,890.00
PLT100EDD 1 HP Electric Direct Drive 5 2 1 48 1750 $1,972.00
PLT150EDD 1.5 HP Electric Direct Drive 6 1 1 48 1750 $2,053.00
PLT200EDD *2 HP Electric Direct Drive 6 2 1 54 1750 $2,127.00
PLT300EDD *3 HP Electric Direct Drive 7 1 1 54 1750 $2,255.00
PLT033XDD 1/3 HP Explosion Proof Direct Drive 4 1 1 36 1750 $1,966.00
PLT050XDD 1/2 HP Explosion Proof Direct Drive 4 2 1 42 1750 $2,120.00
PLT075XDD 3/4 HP Explosion Proof Direct Drive 5 1 1 42 1750 $2,096.00
PLT100XDD 1 HP Explosion Proof Direct Drive 5 2 1 48 1750 $2,384.00
PLT150XDD 1.5 HP Explosion Proof Direct Drive 6 1 1 48 1750 $2,571.00
PLT033VDD 1/3 HP Variable Speed Direct Drive 4 1 1 36 0-1750 $2,349.00
PLT050VDD 1/2 HP Variable Speed Direct Drive 4 2 1 42 0-1750 $2,539.00
PLT075VDD 3/4 HP Variable Speed Direct Drive 5 1 1 42 0-1750 $2,489.00
PLT100VDD 1 HP Variable Speed Direct Drive 5 2 1 48 0-1750 $2,692.00
PLT150VDD 1.5 HP Variable Speed Direct Drive 6 1 1 48 0-1750 $3,178.00
PLT200VDD *2 HP Variable Speed Direct Drive 6 2 1 54 0-1750 $3,357.00
PLT300VDD *3 HP Variable Speed Direct Drive 7 1 1 54 0-1750 $3,275.00
* 230v 3ph

6 MixerDirect.com 812-202-4047 | Call to Customize
