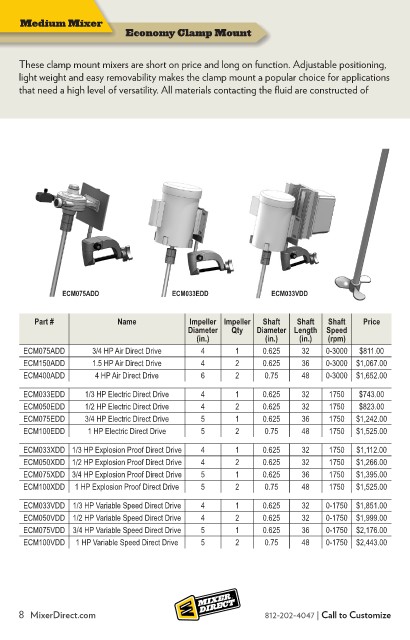

Medium Mixer
Economy Clamp Mount

These clamp mount mixers are short on price and long on function. Adjustable positioning,
light weight and easy removability makes the clamp mount a popular choice for applications
that need a high level of versatility. All materials contacting the fluid are constructed of

ECM075ADD ECM033EDD ECM033VDD

Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
ECM075ADD 3/4 HP Air Direct Drive 4 1 0.625 32 0-3000 $811.00
ECM150ADD 1.5 HP Air Direct Drive 4 2 0.625 36 0-3000 $1,067.00
ECM400ADD 4 HP Air Direct Drive 6 2 0.75 48 0-3000 $1,652.00
ECM033EDD 1/3 HP Electric Direct Drive 4 1 0.625 32 1750 $743.00
ECM050EDD 1/2 HP Electric Direct Drive 4 2 0.625 32 1750 $823.00
ECM075EDD 3/4 HP Electric Direct Drive 5 1 0.625 36 1750 $1,242.00
ECM100EDD 1 HP Electric Direct Drive 5 2 0.75 48 1750 $1,525.00
ECM033XDD 1/3 HP Explosion Proof Direct Drive 4 1 0.625 32 1750 $1,112.00
ECM050XDD 1/2 HP Explosion Proof Direct Drive 4 2 0.625 32 1750 $1,266.00
ECM075XDD 3/4 HP Explosion Proof Direct Drive 5 1 0.625 36 1750 $1,395.00
ECM100XDD 1 HP Explosion Proof Direct Drive 5 2 0.75 48 1750 $1,525.00
ECM033VDD 1/3 HP Variable Speed Direct Drive 4 1 0.625 32 0-1750 $1,851.00
ECM050VDD 1/2 HP Variable Speed Direct Drive 4 2 0.625 32 0-1750 $1,999.00
ECM075VDD 3/4 HP Variable Speed Direct Drive 5 1 0.625 36 0-1750 $2,176.00
ECM100VDD 1 HP Variable Speed Direct Drive 5 2 0.75 48 0-1750 $2,443.00

8 MixerDirect.com 812-202-4047 | Call to Customize
