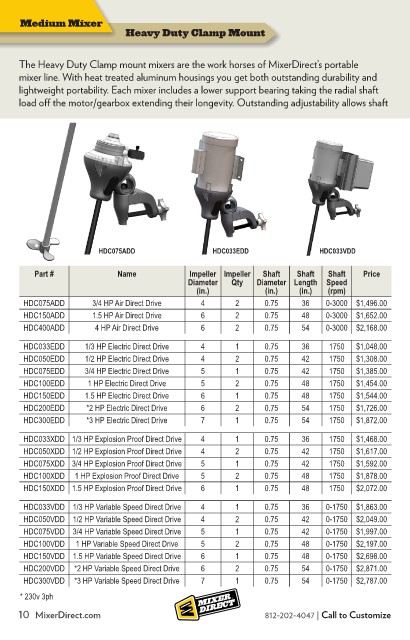

Page 2736 - Flipbook_SolidDesignSoutheast2020

Medium Mixer
Heavy Duty Clamp Mount

The Heavy Duty Clamp mount mixers are the work horses of MixerDirect’s portable
mixer line. With heat treated aluminum housings you get both outstanding durability and
lightweight portability. Each mixer includes a lower support bearing taking the radial shaft
load off the motor/gearbox extending their longevity. Outstanding adjustability allows shaft

HDC075ADD HDC033EDD HDC033VDD

Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
HDC075ADD 3/4 HP Air Direct Drive 4 2 0.75 36 0-3000 $1,496.00
HDC150ADD 1.5 HP Air Direct Drive 6 2 0.75 48 0-3000 $1,652.00
HDC400ADD 4 HP Air Direct Drive 6 2 0.75 54 0-3000 $2,168.00
HDC033EDD 1/3 HP Electric Direct Drive 4 1 0.75 36 1750 $1,048.00
HDC050EDD 1/2 HP Electric Direct Drive 4 2 0.75 42 1750 $1,308.00
HDC075EDD 3/4 HP Electric Direct Drive 5 1 0.75 42 1750 $1,385.00
HDC100EDD 1 HP Electric Direct Drive 5 2 0.75 48 1750 $1,454.00
HDC150EDD 1.5 HP Electric Direct Drive 6 1 0.75 48 1750 $1,544.00
HDC200EDD *2 HP Electric Direct Drive 6 2 0.75 54 1750 $1,726.00
HDC300EDD *3 HP Electric Direct Drive 7 1 0.75 54 1750 $1,872.00
HDC033XDD 1/3 HP Explosion Proof Direct Drive 4 1 0.75 36 1750 $1,468.00
HDC050XDD 1/2 HP Explosion Proof Direct Drive 4 2 0.75 42 1750 $1,617.00
HDC075XDD 3/4 HP Explosion Proof Direct Drive 5 1 0.75 42 1750 $1,592.00
HDC100XDD 1 HP Explosion Proof Direct Drive 5 2 0.75 48 1750 $1,878.00
HDC150XDD 1.5 HP Explosion Proof Direct Drive 6 1 0.75 48 1750 $2,072.00
HDC033VDD 1/3 HP Variable Speed Direct Drive 4 1 0.75 36 0-1750 $1,863.00
HDC050VDD 1/2 HP Variable Speed Direct Drive 4 2 0.75 42 0-1750 $2,049.00
HDC075VDD 3/4 HP Variable Speed Direct Drive 5 1 0.75 42 0-1750 $1,997.00
HDC100VDD 1 HP Variable Speed Direct Drive 5 2 0.75 48 0-1750 $2,197.00
HDC150VDD 1.5 HP Variable Speed Direct Drive 6 1 0.75 48 0-1750 $2,698.00
HDC200VDD *2 HP Variable Speed Direct Drive 6 2 0.75 54 0-1750 $2,871.00
HDC300VDD *3 HP Variable Speed Direct Drive 7 1 0.75 54 0-1750 $2,787.00
* 230v 3ph
10 MixerDirect.com 812-202-4047 | Call to Customize
