flange sizes, impellers and shaft lengths for your application. Standard models include
air, electric, explosion proof motors, 3 blade left handed propellers, and all 316SS wetted
parts. For more details see www.MixerDirect.com or call 812-202-4047.

Looking for
Stainless
Steel Tanks?
See Page 30

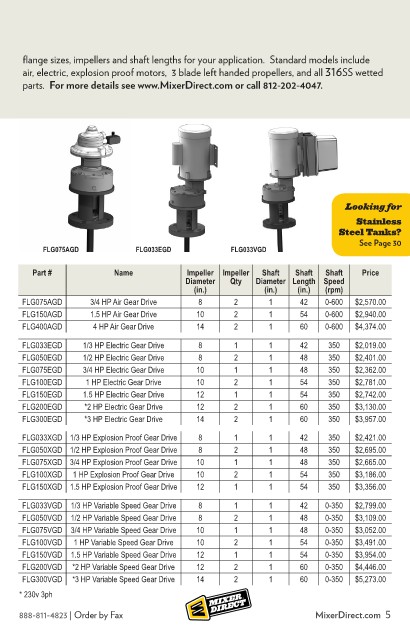

FLG075AGD FLG033EGD FLG033VGD
Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
FLG075AGD 3/4 HP Air Gear Drive 8 2 1 42 0-600 $2,570.00
FLG150AGD 1.5 HP Air Gear Drive 10 2 1 54 0-600 $2,940.00
FLG400AGD 4 HP Air Gear Drive 14 2 1 60 0-600 $4,374.00
FLG033EGD 1/3 HP Electric Gear Drive 8 1 1 42 350 $2,019.00
FLG050EGD 1/2 HP Electric Gear Drive 8 2 1 48 350 $2,401.00
FLG075EGD 3/4 HP Electric Gear Drive 10 1 1 48 350 $2,362.00
FLG100EGD 1 HP Electric Gear Drive 10 2 1 54 350 $2,781.00
FLG150EGD 1.5 HP Electric Gear Drive 12 1 1 54 350 $2,742.00
FLG200EGD *2 HP Electric Gear Drive 12 2 1 60 350 $3,130.00
FLG300EGD *3 HP Electric Gear Drive 14 2 1 60 350 $3,957.00
FLG033XGD 1/3 HP Explosion Proof Gear Drive 8 1 1 42 350 $2,421.00
FLG050XGD 1/2 HP Explosion Proof Gear Drive 8 2 1 48 350 $2,695.00
FLG075XGD 3/4 HP Explosion Proof Gear Drive 10 1 1 48 350 $2,665.00
FLG100XGD 1 HP Explosion Proof Gear Drive 10 2 1 54 350 $3,186.00
FLG150XGD 1.5 HP Explosion Proof Gear Drive 12 1 1 54 350 $3,356.00
FLG033VGD 1/3 HP Variable Speed Gear Drive 8 1 1 42 0-350 $2,799.00
FLG050VGD 1/2 HP Variable Speed Gear Drive 8 2 1 48 0-350 $3,109.00
FLG075VGD 3/4 HP Variable Speed Gear Drive 10 1 1 48 0-350 $3,052.00
FLG100VGD 1 HP Variable Speed Gear Drive 10 2 1 54 0-350 $3,491.00
FLG150VGD 1.5 HP Variable Speed Gear Drive 12 1 1 54 0-350 $3,954.00
FLG200VGD *2 HP Variable Speed Gear Drive 12 2 1 60 0-350 $4,446.00
FLG300VGD *3 HP Variable Speed Gear Drive 14 2 1 60 0-350 $5,273.00
* 230v 3ph
