positioning on two axes of rotation. Each mixer comes standard with an oversized 316SS
shaft and 316SS set screw attached propellers. Many options are available on these mixers
with multiple impeller types, stand mounting options, and varied shaft lengths. Standard
models include air, electric, explosion proof motors.
For more details see www.MixerDirect.com or call 812-202-4047.

Looking for
Stainless
Steel Tanks?
See Page 30

Mixer
Stands?
See Page 3

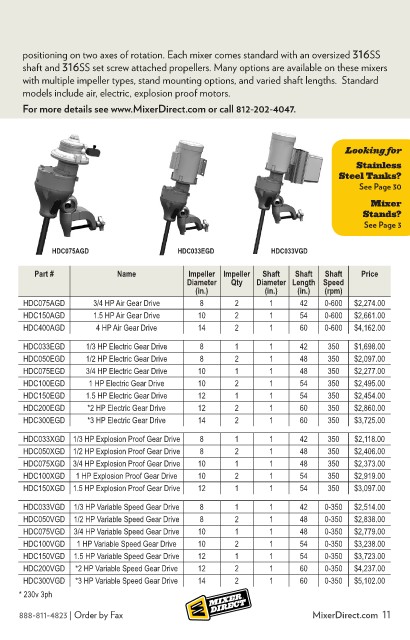

HDC075AGD HDC033EGD HDC033VGD

Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
HDC075AGD 3/4 HP Air Gear Drive 8 2 1 42 0-600 $2,274.00
HDC150AGD 1.5 HP Air Gear Drive 10 2 1 54 0-600 $2,661.00
HDC400AGD 4 HP Air Gear Drive 14 2 1 60 0-600 $4,162.00
HDC033EGD 1/3 HP Electric Gear Drive 8 1 1 42 350 $1,698.00
HDC050EGD 1/2 HP Electric Gear Drive 8 2 1 48 350 $2,097.00
HDC075EGD 3/4 HP Electric Gear Drive 10 1 1 48 350 $2,277.00
HDC100EGD 1 HP Electric Gear Drive 10 2 1 54 350 $2,495.00
HDC150EGD 1.5 HP Electric Gear Drive 12 1 1 54 350 $2,454.00
HDC200EGD *2 HP Electric Gear Drive 12 2 1 60 350 $2,860.00
HDC300EGD *3 HP Electric Gear Drive 14 2 1 60 350 $3,725.00
HDC033XGD 1/3 HP Explosion Proof Gear Drive 8 1 1 42 350 $2,118.00
HDC050XGD 1/2 HP Explosion Proof Gear Drive 8 2 1 48 350 $2,406.00
HDC075XGD 3/4 HP Explosion Proof Gear Drive 10 1 1 48 350 $2,373.00
HDC100XGD 1 HP Explosion Proof Gear Drive 10 2 1 54 350 $2,919.00
HDC150XGD 1.5 HP Explosion Proof Gear Drive 12 1 1 54 350 $3,097.00
HDC033VGD 1/3 HP Variable Speed Gear Drive 8 1 1 42 0-350 $2,514.00
HDC050VGD 1/2 HP Variable Speed Gear Drive 8 2 1 48 0-350 $2,838.00
HDC075VGD 3/4 HP Variable Speed Gear Drive 10 1 1 48 0-350 $2,779.00
HDC100VGD 1 HP Variable Speed Gear Drive 10 2 1 54 0-350 $3,238.00
HDC150VGD 1.5 HP Variable Speed Gear Drive 12 1 1 54 0-350 $3,723.00
HDC200VGD *2 HP Variable Speed Gear Drive 12 2 1 60 0-350 $4,237.00
HDC300VGD *3 HP Variable Speed Gear Drive 14 2 1 60 0-350 $5,102.00
* 230v 3ph

888-811-4823 | Order by Fax MixerDirect.com 11
