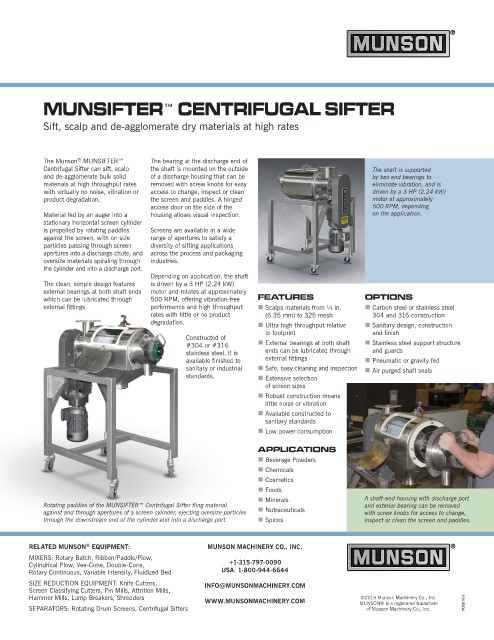

MUNSIFTER CENTRIFUGAL SIFTER
™
Sift, scalp and de-agglomerate dry materials at high rates

®
The Munson MUNSIFTER™ The bearing at the discharge end of Mill case and hinged
Centrifugal Sifter can sift, scalp the shaft is mounted on the outside The shaft is supported
access door—both
and de-agglomerate bulk solid of a discharge housing that can be by two end bearings to
constructed of welded
materials at high throughput rates removed with screw knobs for easy eliminate vibration, and is
heavy-gauge carbon
with virtually no noise, vibration or access to change, inspect or clean driven by a 3 HP (2.24 kW)
steel and machined
product degradation. the screen and paddles. A hinged motor at approximately
flanges—are secured
access door on the side of the 500 RPM, depending
by an equally robust
Material fed by an auger into a housing allows visual inspection. on the application.
latch assembly.
stationary horizontal screen cylinder
is propelled by rotating paddles Screens are available in a wide
against the screen, with on-size range of apertures to satisfy a
particles passing through screen diversity of sifting applications
apertures into a discharge chute, and across the process and packaging
oversize materials spiraling through industries.
the cylinder and into a discharge port.
Depending on application, the shaft
The clean, simple design features is driven by a 3 HP (2.24 kW)
external bearings at both shaft ends motor and rotates at approximately
which can be lubricated through 500 RPM, offering vibration-free FEATURES OPTIONS
external fittings. performance and high throughput n Scalps materials from ¼ in. n Carbon steel or stainless steel
rates with little or no product (6.35 mm) to 325 mesh 304 and 316 construction
degradation. n Ultra high throughput relative n Sanitary design, construction
to footprint and finish
Constructed of
#304 or #316 n External bearings at both shaft n Stainless steel support structure
stainless steel, it is ends can be lubricated through and guards
available finished to external fittings n Pneumatic or gravity fed
sanitary or industrial n Safe, easy cleaning and inspection n Air purged shaft seals
standards. n Extensive selection
of screen sizes
n Robust construction means
little noise or vibration
n Available constructed to
sanitary standards
n Low power consumption

APPLICATIONS
n Beverage Powders
n Chemicals
n Cosmetics
n Foods
n Minerals A shaft-end housing with discharge port
Rotating paddles of the MUNSIFTER™ Centrifugal Sifter fling material and exterior bearing can be removed
against and through apertures of a screen cylinder, ejecting oversize particles n Nutraceuticals with screw knobs for access to change,
through the downstream end of the cylinder and into a discharge port. n Spices inspect or clean the screen and paddles.

®
RELATED MUNSON EQUIPMENT: MUNSON MACHINERY CO., INC.
MIXERS: Rotary Batch, Ribbon/Paddle/Plow,
Cylindrical Plow, Vee-Cone, Double-Cone, +1-315-797-0090
Rotary Continuous, Variable Intensity, Fluidized Bed USA: 1-800-944-6644
SIZE REDUCTION EQUIPMENT: Knife Cutters, INFO@MUNSONMACHINERY.COM
Screen Classifying Cutters, Pin Mills, Attrition Mills,
Hammer Mills, Lump Breakers, Shredders ©2019 Munson Machinery Co., Inc.
WWW.MUNSONMACHINERY.COM MUNSON® is a registered trademark HH-0504
SEPARATORS: Rotating Drum Screens, Centrifugal Sifters of Munson Machinery Co., Inc.
