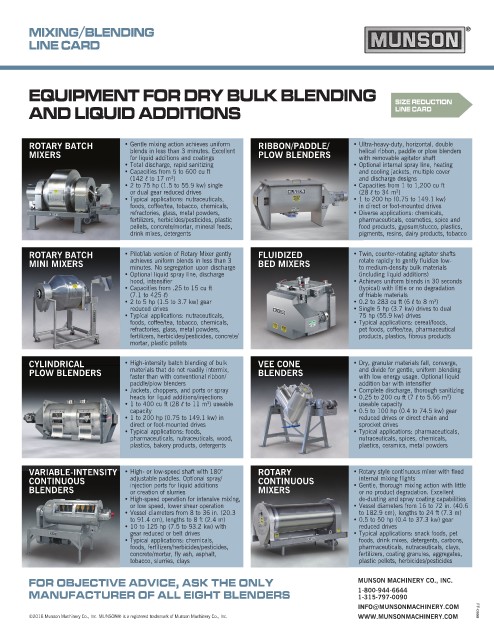

MIXING/BLENDING
LINE CARD
EQUIPMENT FOR DRy BULK BLENDING SIZE REDUCTION
AND LIQUID ADDITIONS LINE CARD
rOtarY BatCH • Gentle mixing action achieves uniform riBBOn/paDDle/ • Ultra-heavy-duty, horizontal, double
miXers blends in less than 3 minutes. Excellent plOw BlenDers helical ribbon, paddle or plow blenders
for liquid additions and coatings
with removable agitator shaft
• Total discharge, rapid sanitizing • Optional internal spray line, heating
• Capacities from 5 to 600 cu ft and cooling jackets, multiple cover
(142 ℓ to 17 m ) and discharge designs
3
• 2 to 75 hp (1.5 to 55.9 kw) single • Capacities from 1 to 1,200 cu ft
or dual gear reduced drives (28 ℓ to 34 m )
3
• Typical applications: nutraceuticals, • 1 to 200 hp (0.75 to 149.1 kw)
foods, coffee/tea, tobacco, chemicals, in direct or foot-mounted drives
refractories, glass, metal powders, • Diverse applications: chemicals,
fertilizers, herbicides/pesticides, plastic pharmaceuticals, cosmetics, spice and
pellets, concrete/mortar, mineral feeds, food products, gypsum/stucco, plastics,
drink mixes, detergents pigments, resins, dairy products, tobacco
rOtarY BatCH • Pilot/lab version of Rotary Mixer gently fluiDizeD • Twin, counter-rotating agitator shafts
mini miXers achieves uniform blends in less than 3 BeD miXers rotate rapidly to gently fluidize low-
minutes. No segregation upon discharge
to medium-density bulk materials
• Optional liquid spray line, discharge (including liquid additions)
hood, intensifier • Achieves uniform blends in 30 seconds
• Capacities from .25 to 15 cu ft (typical) with little or no degradation
(7.1 to 425 ℓ) of friable materials
• 2 to 5 hp (1.5 to 3.7 kw) gear • 0.2 to 283 cu ft (6 ℓ to 8 m )
3
reduced drives • Single 5 hp (3.7 kw) drives to dual
• Typical applications: nutraceuticals, 75 hp (55.9 kw) drives
foods, coffee/tea, tobacco, chemicals, • Typical applications: cereal/foods,
refractories, glass, metal powders, pet foods, coffee/tea, pharmaceutical
fertilizers, herbicides/pesticides, concrete/ products, plastics, fibrous products
mortar, plastic pellets
CYlinDriCal • High-intensity batch blending of bulk vee COne • Dry, granular materials fall, converge,
plOw BlenDers materials that do not readily intermix, BlenDers and divide for gentle, uniform blending
faster than with conventional ribbon/
with low energy usage. Optional liquid
paddle/plow blenders addition bar with intensifier
• Jackets, choppers, and ports or spray • Complete discharge, thorough sanitizing
heads for liquid additions/injections • 0.25 to 200 cu ft (7 ℓ to 5.66 m )
3
3
• 1 to 400 cu ft (28 ℓ to 11 m ) useable useable capacity
capacity • 0.5 to 100 hp (0.4 to 74.5 kw) gear
• 1 to 200 hp (0.75 to 149.1 kw) in reduced drives or direct chain and
direct or foot-mounted drives sprocket drives
• Typical applications: foods, • Typical applications: pharmaceuticals,
pharmaceuticals, nutraceuticals, wood, nutraceuticals, spices, chemicals,
plastics, bakery products, detergents plastics, ceramics, metal powders
variaBle-intensitY • High- or low-speed shaft with 180° rOtarY • Rotary style continuous mixer with fixed
internal mixing flights
COntinuOus adjustable paddles. Optional spray/ COntinuOus • Gentle, thorough mixing action with little
BlenDers injection ports for liquid additions miXers or no product degradation. Excellent
or creation of slurries
• High-speed operation for intensive mixing, de-dusting and spray coating capabilities
or low speed, lower shear operation • Vessel diameters from 16 to 72 in. (40.6
• Vessel diameters from 8 to 36 in. (20.3 to 182.9 cm), lengths to 24 ft (7.3 m)
to 91.4 cm), lengths to 8 ft (2.4 m) • 0.5 to 50 hp (0.4 to 37.3 kw) gear
• 10 to 125 hp (7.5 to 93.2 kw) with reduced drives
gear reduced or belt drives • Typical applications: snack foods, pet
• Typical applications: chemicals, foods, drink mixes, detergents, carbons,
foods, fertilizers/herbicides/pesticides, pharmaceuticals, nutraceuticals, clays,
concrete/mortar, fly ash, asphalt, fertilizers, coating granules, aggregates,
tobacco, slurries, clays plastic pellets, herbicides/pesticides
FOR OBjECTIvE ADvICE, ASK ThE ONLy munsOn maCHinerY CO., inC.
MANUFACTURER OF ALL EIGhT BLENDERS 1-800-944-6644
1-315-797-0090
infO@munsOnmaCHinerY.COm FF-0998
©2018 Munson Machinery Co., Inc. MUNSON® is a registered trademark of Munson Machinery Co., Inc. www.munsOnmaCHinerY.COm
