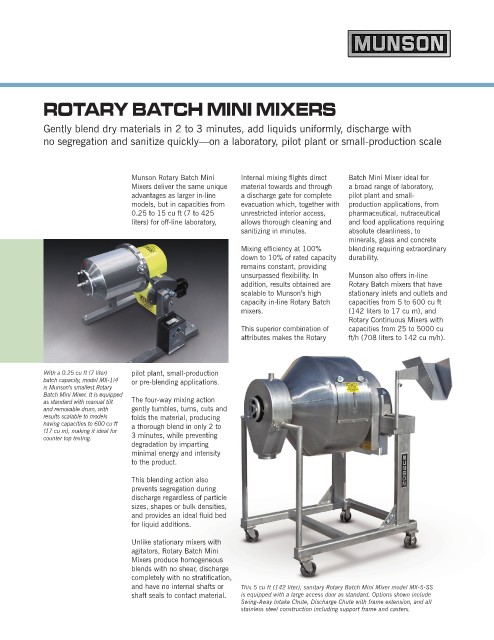

ROTARY BATCH MINI MIXERS

Gently blend dry materials in 2 to 3 minutes, add liquids uniformly, discharge with
no segregation and sanitize quickly—on a laboratory, pilot plant or small-production scale

Munson Rotary Batch Mini Internal mixing flights direct Batch Mini Mixer ideal for
Mixers deliver the same unique material towards and through a broad range of laboratory,
advantages as larger in-line a discharge gate for complete pilot plant and small-
models, but in capacities from evacuation which, together with production applications, from
0.25 to 15 cu ft (7 to 425 unrestricted interior access, pharmaceutical, nutraceutical
liters) for off-line laboratory, allows thorough cleaning and and food applications requiring
sanitizing in minutes. absolute cleanliness, to
minerals, glass and concrete
Mixing efficiency at 100% blending requiring extraordinary
down to 10% of rated capacity durability.
remains constant, providing
unsurpassed flexibility. In Munson also offers in-line
addition, results obtained are Rotary Batch mixers that have
scalable to Munson’s high stationary inlets and outlets and
capacity in-line Rotary Batch capacities from 5 to 600 cu ft
mixers. (142 liters to 17 cu m), and
Rotary Continuous Mixers with
This superior combination of capacities from 25 to 5000 cu
attributes makes the Rotary ft/h (708 liters to 142 cu m/h).

With a 0.25 cu ft (7 liter) pilot plant, small-production
batch capacity, model MX-1/4 or pre-blending applications.
is Munson’s smallest Rotary
Batch Mini Mixer. It is equipped
as standard with manual tilt The four-way mixing action
and removable drum, with gently tumbles, turns, cuts and
results scalable to models folds the material, producing
having capacities to 600 cu ft a thorough blend in only 2 to
(17 cu m), making it ideal for 3 minutes, while preventing
counter top testing.
degradation by imparting
minimal energy and intensity
to the product.

This blending action also
prevents segregation during
discharge regardless of particle
sizes, shapes or bulk densities,
and provides an ideal fluid bed
for liquid additions.

Unlike stationary mixers with
agitators, Rotary Batch Mini
Mixers produce homogeneous
blends with no shear, discharge
completely with no stratification,
and have no internal shafts or This 5 cu ft (142 liter), sanitary Rotary Batch Mini Mixer model MX-5-SS
shaft seals to contact material. is equipped with a large access door as standard. Options shown include
Swing-Away Intake Chute, Discharge Chute with frame extension, and all
stainless steel construction including support frame and casters.
